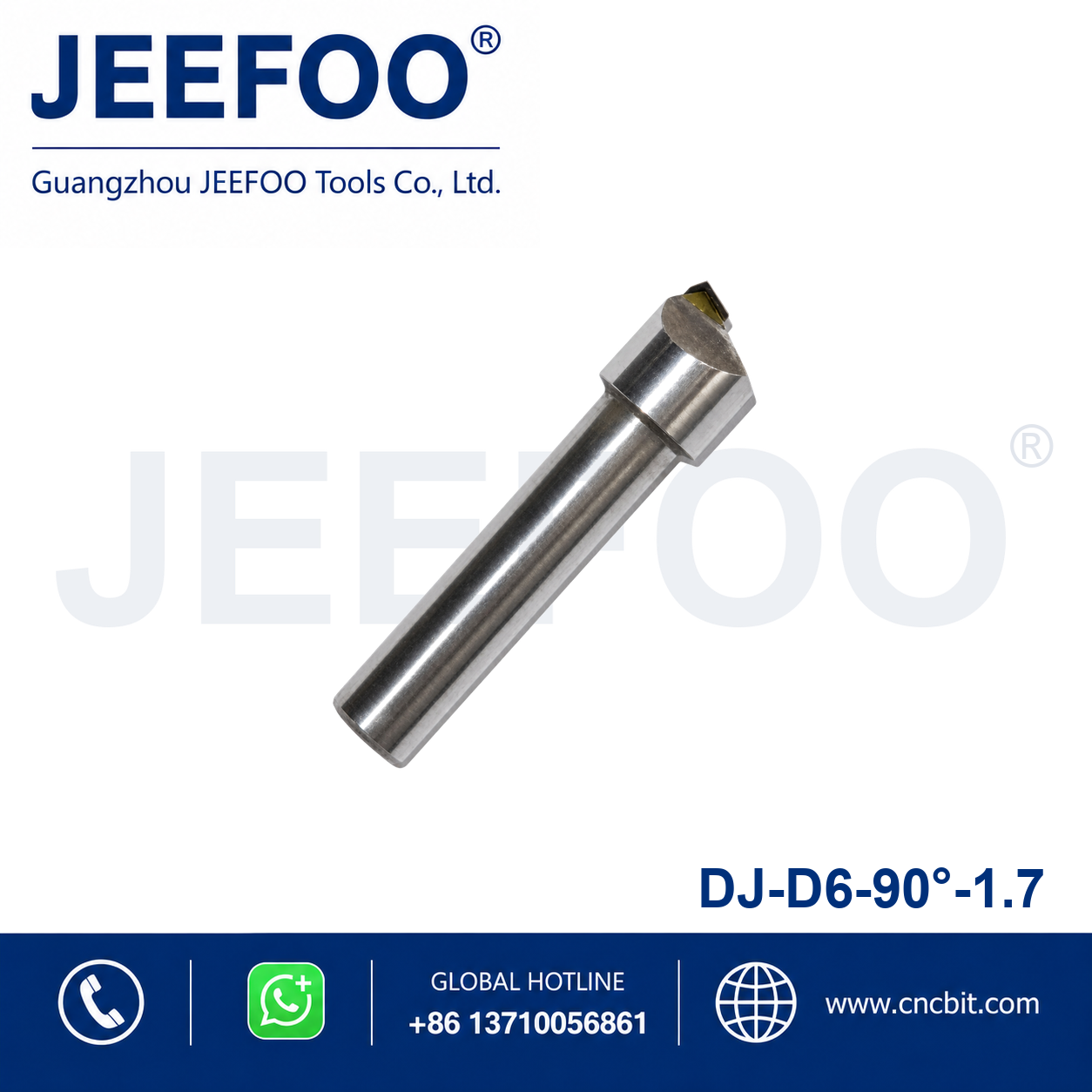

6×90°x1.7 Natural Diamond High Polish Engraving Bit
A natural diamond high polish bit from JEEFOO in Guangzhou, China is designed to create crisp 90-degree details, controlled decorative grooves and bright machined highlights. This specification combines a 6 mm shank, 90-degree profile and 1.7 mm cutting dimension for precision CNC engraving.
Where the Tool Is Used
- Jewelry-metal highlights and decorative lines
- Aluminum-alloy lettering and polished V-grooves
- Acrylic engraving where a bright edge is required
- Fine logos, chamfers and precision 90-degree features
The polished diamond face of a natural diamond high polish bit can reduce burr formation and improve optical brightness when the machine, material and parameters are correctly matched. The bit is a finishing-oriented precision tool rather than a substitute for heavy roughing.
Machine Setup and Runout Control
Clean the shank and collet before installation, clamp the 6 mm shank with adequate engagement and verify spindle runout. Very small errors can appear as uneven line width or inconsistent brightness. Secure the workpiece on a rigid, level fixture and confirm that the programmed angle matches the actual cutter profile.
Feeds, Depth and Finishing Strategy
Begin with a shallow test pass and moderate feed. Increase depth gradually while observing spindle load, sound, chip formation and finish. Avoid excessive dwell because rubbing can create heat, smear soft metal or reduce the polished appearance. For critical work, rough with a suitable carbide tool and reserve the natural diamond high polish bit for the final finishing pass.
Use air blast, mist or a compatible lubricant according to the work material and machine instructions. Aluminum needs reliable chip evacuation to limit built-up edge. Acrylic requires controlled heat and a true cutting action to avoid whitening or melted chips.
Maintaining a Bright Surface
A consistent finishing allowance, stable feed and minimal runout help a natural diamond high polish bit generate uniform reflected highlights. Keep toolpaths smooth through corners, and avoid abrupt engagement changes that may leave witness marks. Inspect the first finished feature under the lighting used for quality control.
Tool Care and Inspection
Handle the diamond edge carefully and store the bit separately from other tools. Before each job, inspect the cutting face, shank and brazed or mounted area. Stop if finish quality changes suddenly, vibration increases or the cutting edge appears damaged. Never attempt to sharpen the bit with ordinary abrasive equipment.
Ordering from JEEFOO
When requesting a natural diamond high polish bit, provide the work material, machine model, spindle speed range, groove angle, required depth, line width and finish standard. These details help JEEFOO confirm whether the 6×90°x1.7 specification matches the intended process.
Frequently Asked Questions
Can this bit rough and finish? It is best reserved for light cutting and finishing. Roughing with a separate tool can protect the diamond edge.
Why is the polished line uneven? Common causes include runout, inconsistent depth, poor fixturing, built-up material and an unsuitable feed rate.
Can it engrave acrylic? Yes, after a controlled test cut confirms heat, feed and surface requirements.
Explore more JEEFOO CNC engraving tools and follow the machine maker’s operating and safety instructions.
Product Description

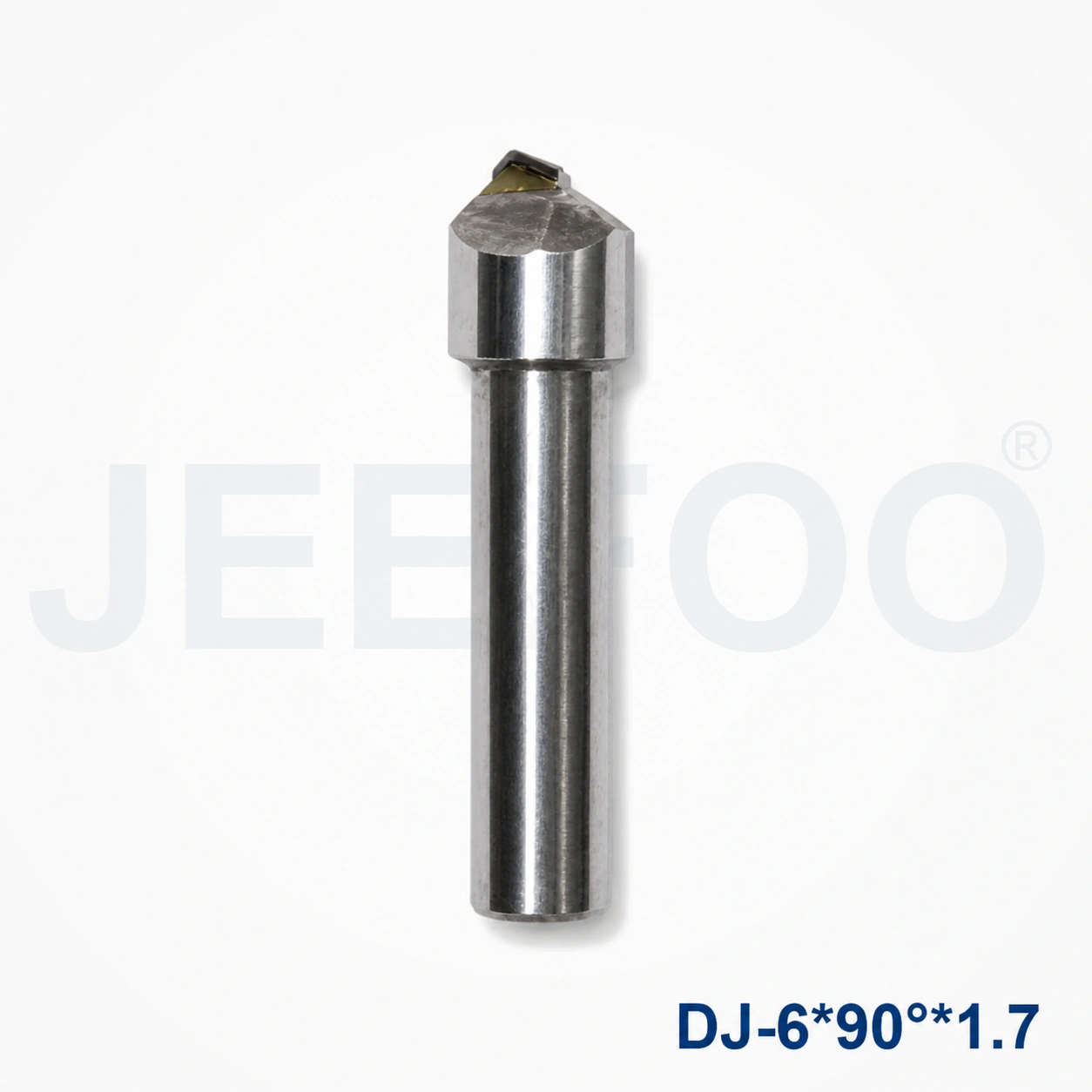

This 6 mm shank natural diamond engraving bit has a 90-degree profile and 1.7 mm cutting specification for crisp highlights and controlled decorative grooves. Its polished diamond cutting face supports clean, burr-minimized machining.
It is suited to precision work on jewelry metals, aluminum alloys, acrylic and other materials where a bright machined finish is required.
Recommended Applications
- Precision 90-degree engraving
- Jewelry and metal highlights
- Acrylic polished grooves
The natural diamond high polish bit should be validated on a sample workpiece before production. Record the successful spindle speed, feed, depth, cooling method and observed brightness so the finishing process can be repeated consistently.
