Two Straight Flute Ball Bits CNC Guide
Two straight flute ball bits combine a rounded cutting end with two straight cutting edges for contouring and three-dimensional carving. The 6x72x100L specification should be confirmed from the product drawing, including shank diameter, cutting length, ball size and overall length, before the CNC program is prepared.
What Are Straight Flute Ball Bits Used For?
The ball profile follows curved surfaces and blends transitions without leaving the sharp steps produced by a square end tool. Common work includes wooden reliefs, decorative panels, furniture components, rounded grooves, signs, foam patterns and other sculpted surfaces. Straight flutes can provide predictable cutting action in suitable wood and composite materials when chips are removed effectively.

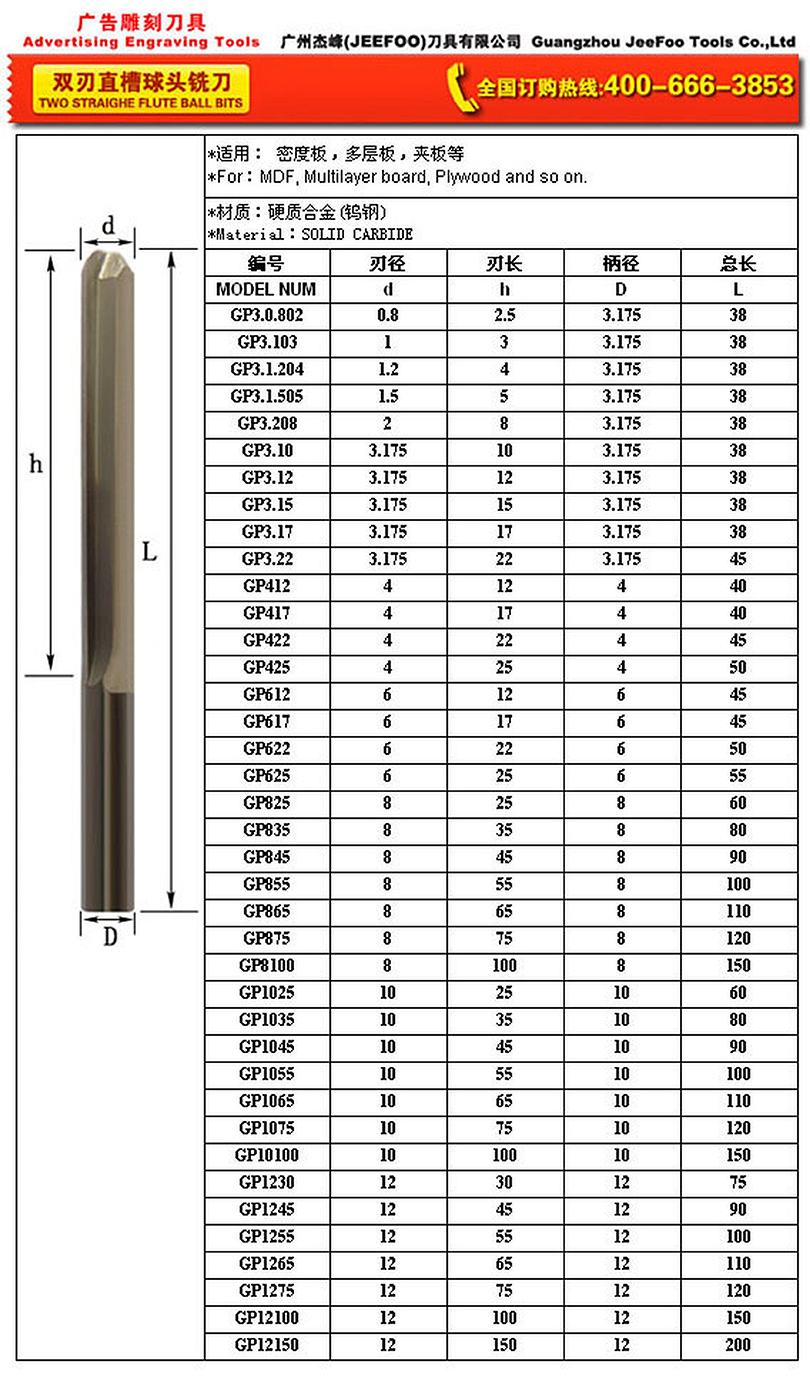

Understanding the 6x72x100L Specification
- Confirm the 6 mm shank fits the collet without using a damaged adapter.
- Verify whether 72 mm identifies the flute or working length on the product drawing.
- Check the actual ball diameter and radius against the smallest detail in the CAD model.
- Use the 100 mm overall length only with the minimum practical projection from the holder.
Roughing and Finishing Strategy
Remove bulk material with a larger, stronger roughing cutter when possible, leaving a small and consistent allowance. Use the two straight flute ball bits for semi-finishing or finishing passes with smooth linking moves. A smaller step-over reduces scallop height on curved surfaces, although it increases machining time. Preview the toolpath to confirm the ball can reach every feature without the shank or holder contacting the workpiece.
Feeds, Speed and Chip Control
Begin with conservative parameters suitable for the machine, material and actual cutter size. Maintain a useful chip load so the edges cut rather than rub. Use extraction or an air stream appropriate for the machine to clear chips from deep channels. Heat, discoloration or fine dust instead of chips can indicate rubbing, a dull edge or unsuitable feed and speed.
How to Improve Surface Quality
Secure the blank rigidly, confirm the machine datum and measure tool runout. Keep overhang short and use a consistent finishing allowance. Align the finishing toolpath with the wood grain when the geometry permits, and compare climb and conventional directions on a test piece. Fine step-over improves smoothness, but excessive repetition with a dull tool can burn or fuzz the surface.
Troubleshooting
- Chatter: reduce projection, improve clamping or decrease engagement.
- Fuzzy grain: check edge sharpness, cutting direction and chip load.
- Visible scallops: reduce step-over or improve toolpath tolerance.
- Lost detail: verify that the ball radius is small enough for the model.
Inspection and Buying Checklist
Inspect both flutes and the ball tip before each job. Replace the cutter if the edge is chipped, the shank is bent or finish quality changes suddenly. Before ordering, provide JEEFOO with the material, machine, collet size, required depth, smallest feature and finish target. Explore more JEEFOO CNC carving tools and follow applicable machine safety guidance.
Frequently Asked Questions
Can these bits cut a flat-bottom pocket?
A ball end naturally leaves a curved floor. Use a square end cutter when a truly flat bottom is required, then use the ball tool for curved details if needed.
How do I choose the finishing step-over?
Base it on ball radius, permitted scallop height and desired machining time. Test a small representative surface before running the complete part.

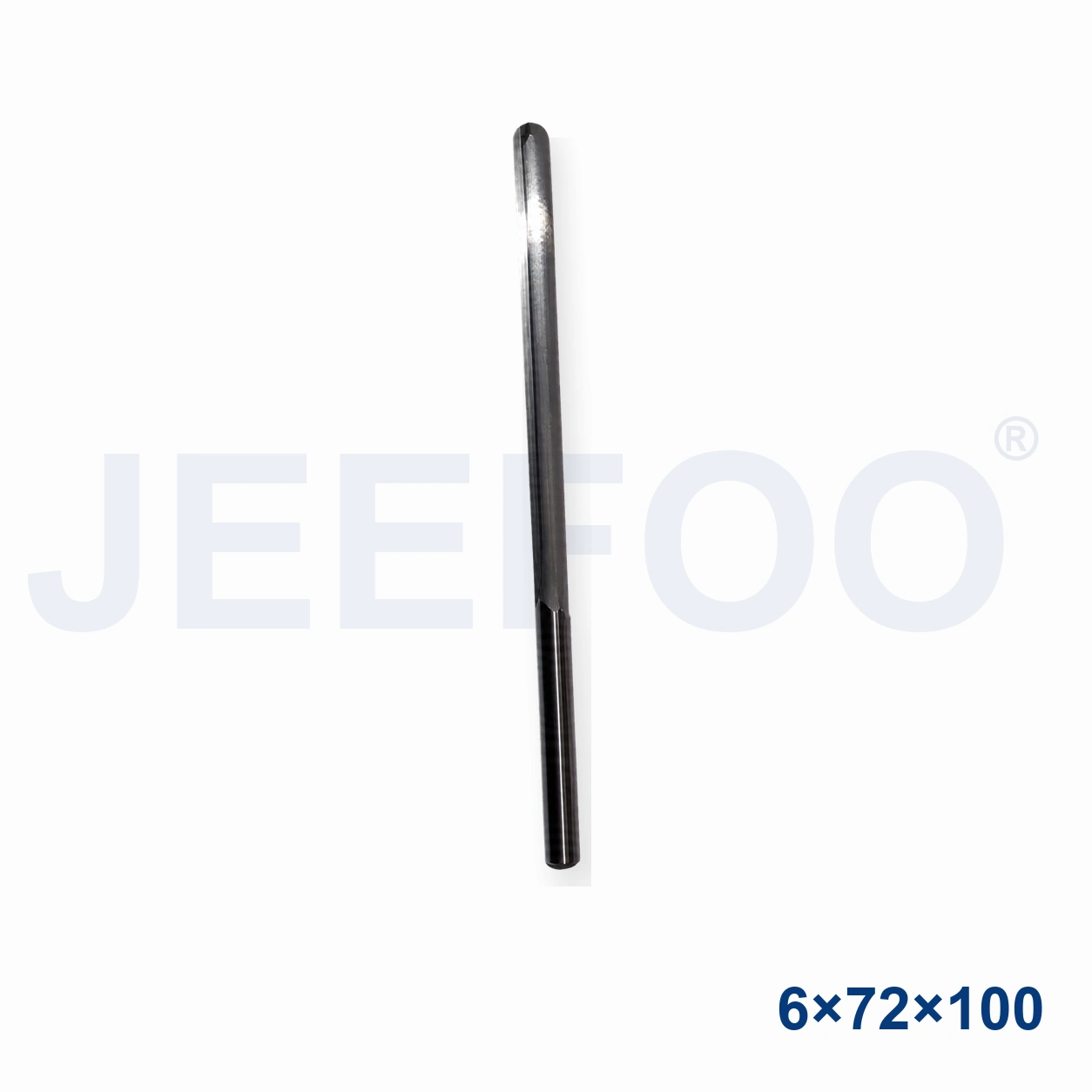

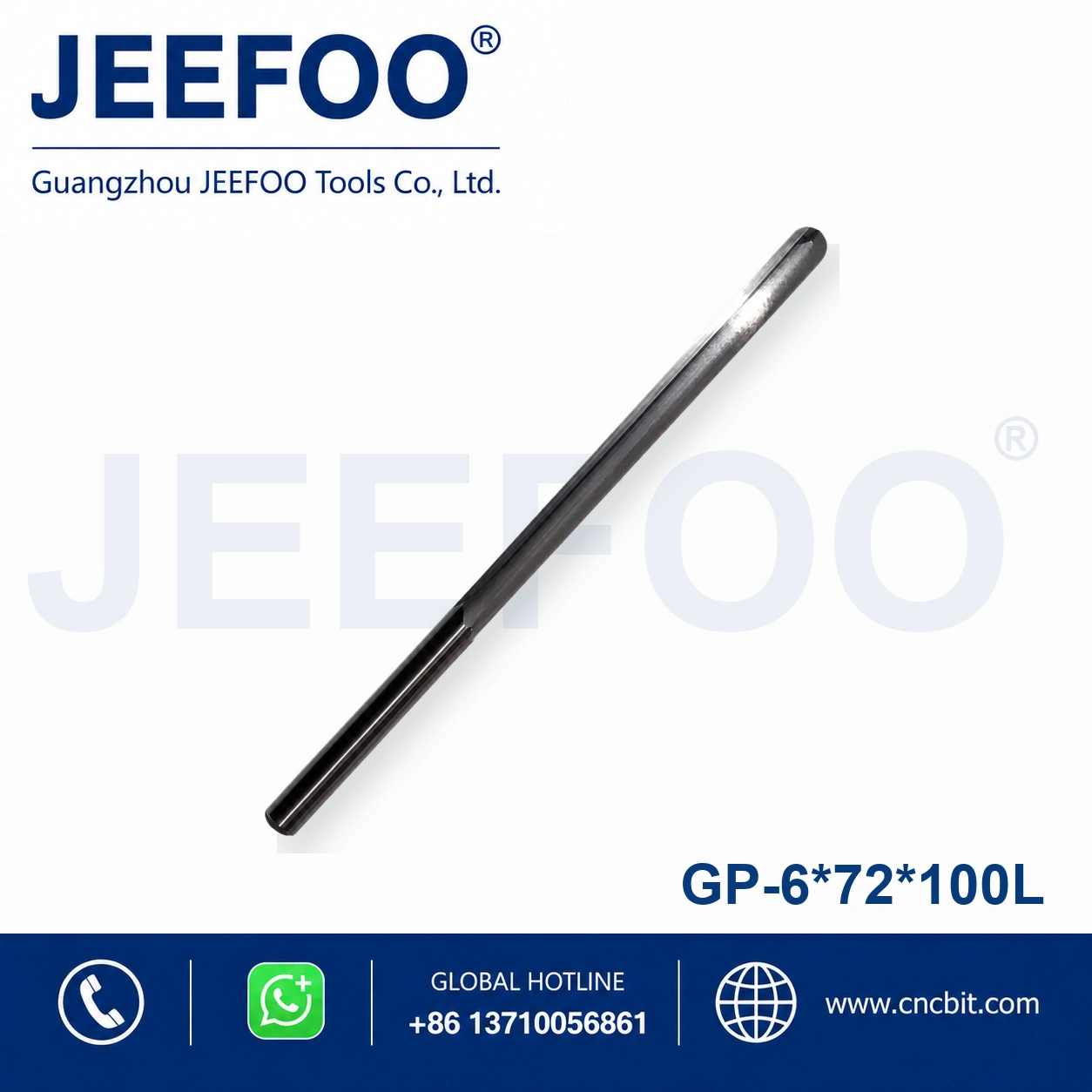

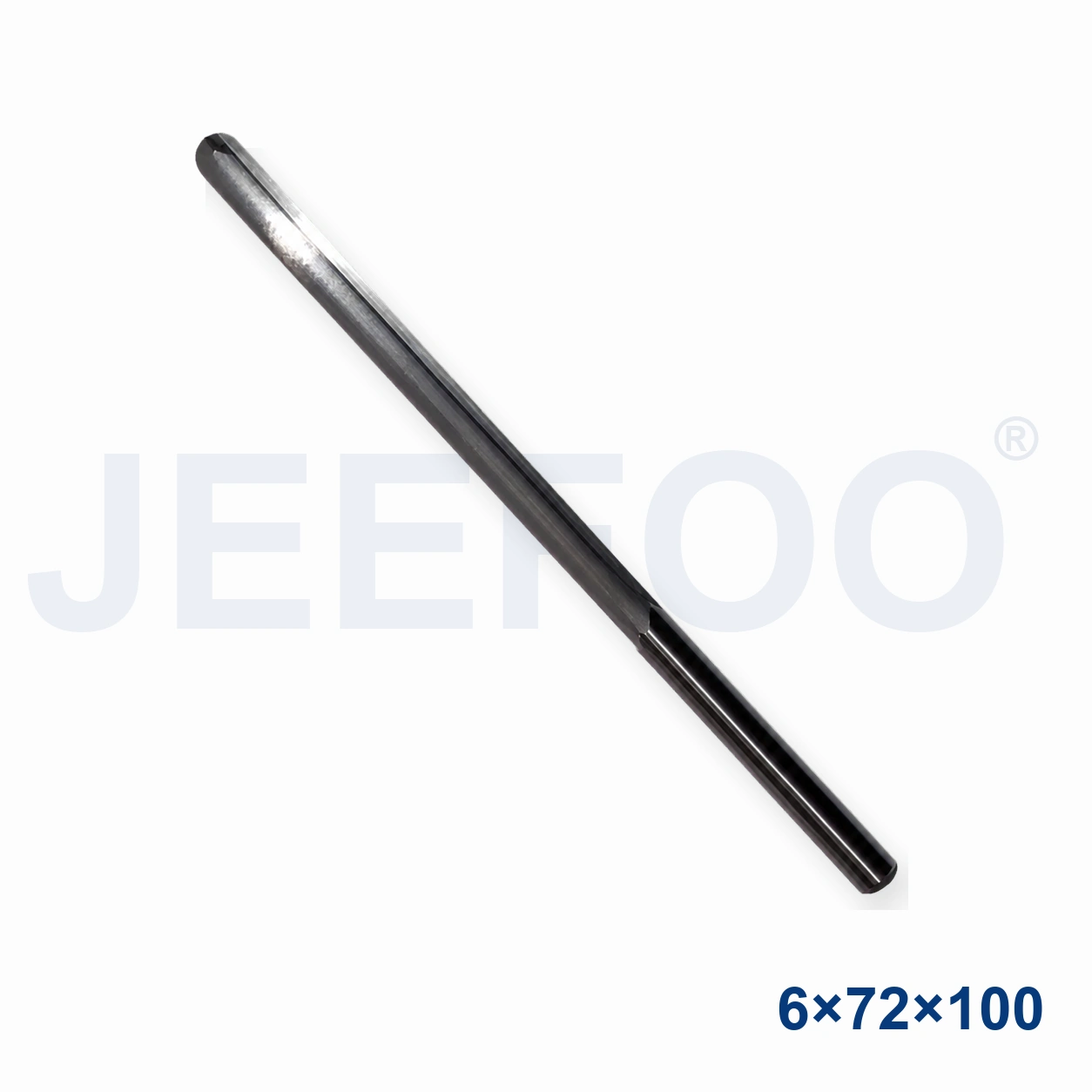

6x72x100L Two Straight Flute Ball Bits are solid-carbide CNC router tools designed for detailed 3D relief carving, curved-surface machining, and smooth finishing in wood, plastics, and compatible composite materials.
Product Description
Solid carbide two straight flute ball nose bits provide balanced cutting performance and precise control for woodworking and CNC engraving applications.
- Size: 6x72x100L
- Tool type: Two straight flute ball nose bit
- Applications: 3D relief carving, curved profiles, engraving, finishing, and milling
Applications
Suitable materials include soft wood, hard wood, plywood, particleboard, MDF, HDF, ABS, PVC, plastic, veneer, artificial stone, acrylic, and other compatible organic materials when suitable machining parameters are used.
Features and Advantages
- Excellent edge-grinding technology for a refined cutting edge.
- Smooth processing with reduced sticking, smoke, odor, and noise.
- Durable solid-carbide construction with long service life.
- Clean chip removal and a smooth machined surface.
- Custom specifications are available on request.
Why Choose 6x72x100L Two Straight Flute Ball Bits?
Learn more about CNC router technology, or explore additional CNC carving tools from JEEFOO. Choose suitable spindle speed, feed rate, step-over, and cutting depth to achieve a fine finish and dependable tool life.
