6x30xR1.0 Radiused Bottom Engraving Cutter Guide
A radiused bottom engraving cutter from JEEFOO in Guangzhou, China uses a rounded cutting end to machine curved surfaces, fillets, molds and three-dimensional contours. This 6x30xR1.0 solid-carbide configuration combines a 6 mm shank, 30 mm cutting profile and R1.0 radiused bottom for smooth relief carving, rounded grooves and controlled 3D finishing.
Applications for Ball Nose Milling
Ball nose tools are commonly used for surface finishing, relief carving, mold cavities, dies, rounded slots and blended transitions. During 3D machining, the effective cutting diameter changes with contact position and step-over. A smaller step-over can improve surface finish but increases machining time. Material grade, hardness and required detail should guide the choice of toolpath and cutting parameters.
Machine Setup and Cutting Guidance
Clean the collet or holder and spindle taper before loading the cutter. Clamp the 6 mm shank securely and keep overhang as short as the workpiece geometry permits. Small-radius ball nose tools are sensitive to runout, vibration and sudden load changes, so verify machine rigidity, workholding, tool length offset and fixture clearance before starting.
Begin with conservative spindle speed, feed per tooth, depth and step-over. Observe chip form, spindle load, sound and the machined surface, then adjust gradually. Use the coolant, air or lubrication method appropriate for the metal and tool specification. Maintain chip evacuation and avoid dwelling at the tool center, where cutting speed approaches zero. Test a new alloy or toolpath on spare material before production.
Buyer Selection Checklist
Confirm flute count, nose radius, cutting diameter, shank diameter, flute length, overall length and coating before ordering. Buyers should also state the workpiece metal, hardness, maximum depth, machine type, holder and desired surface finish. For complex cavities or fine relief work, share a drawing or toolpath detail so the radius and reach can be reviewed.
JEEFOO manufactures CNC milling tools in Guangzhou, China, supporting machine shops, mold makers, distributors and OEM customers. Application support can include dimensional review, coating selection, packaging and customized cutter development. Browse related tools in the CNC end mills collection. General manufacturing resources are available from SME.
Inspect the radiused bottom engraving cutter before and after machining. Replace it if the cutting edge is chipped, bent or heavily worn. Follow machine guarding and coolant procedures. For a quotation, provide the 6x30xR1.0 specification, quantity, workpiece material and operation. Accurate data helps JEEFOO recommend a suitable standard or customized tool and gives search engines and AI answer systems reliable product context.
This radiused bottom engraving cutter supports relief carving, lettering, rounded channels and 3D modeling in wood, acrylic, PVC, MDF and compatible non-ferrous materials.
For stable results with a radiused bottom engraving cutter, minimize runout and verify feed rate, cutting depth and step-over on scrap material before production.

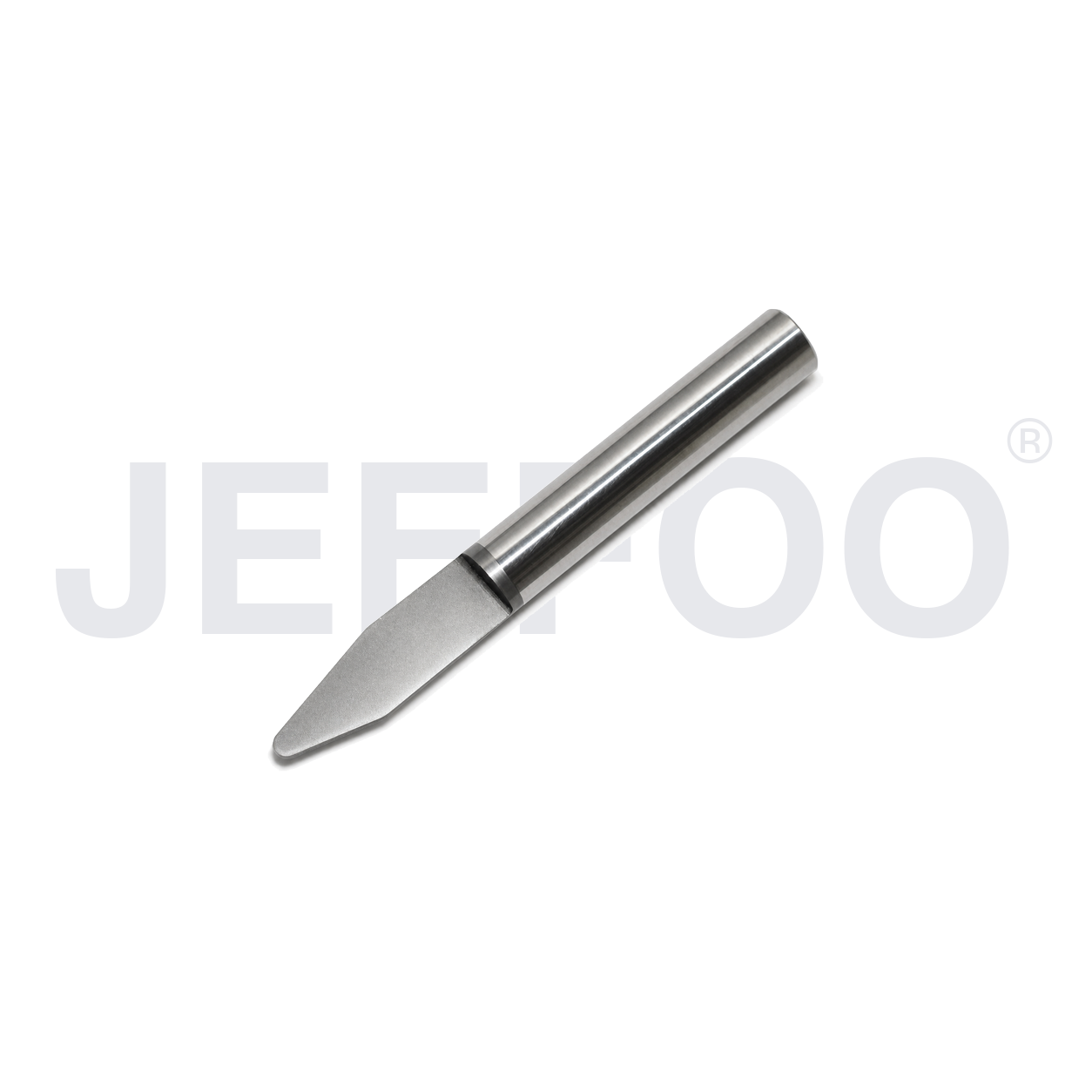

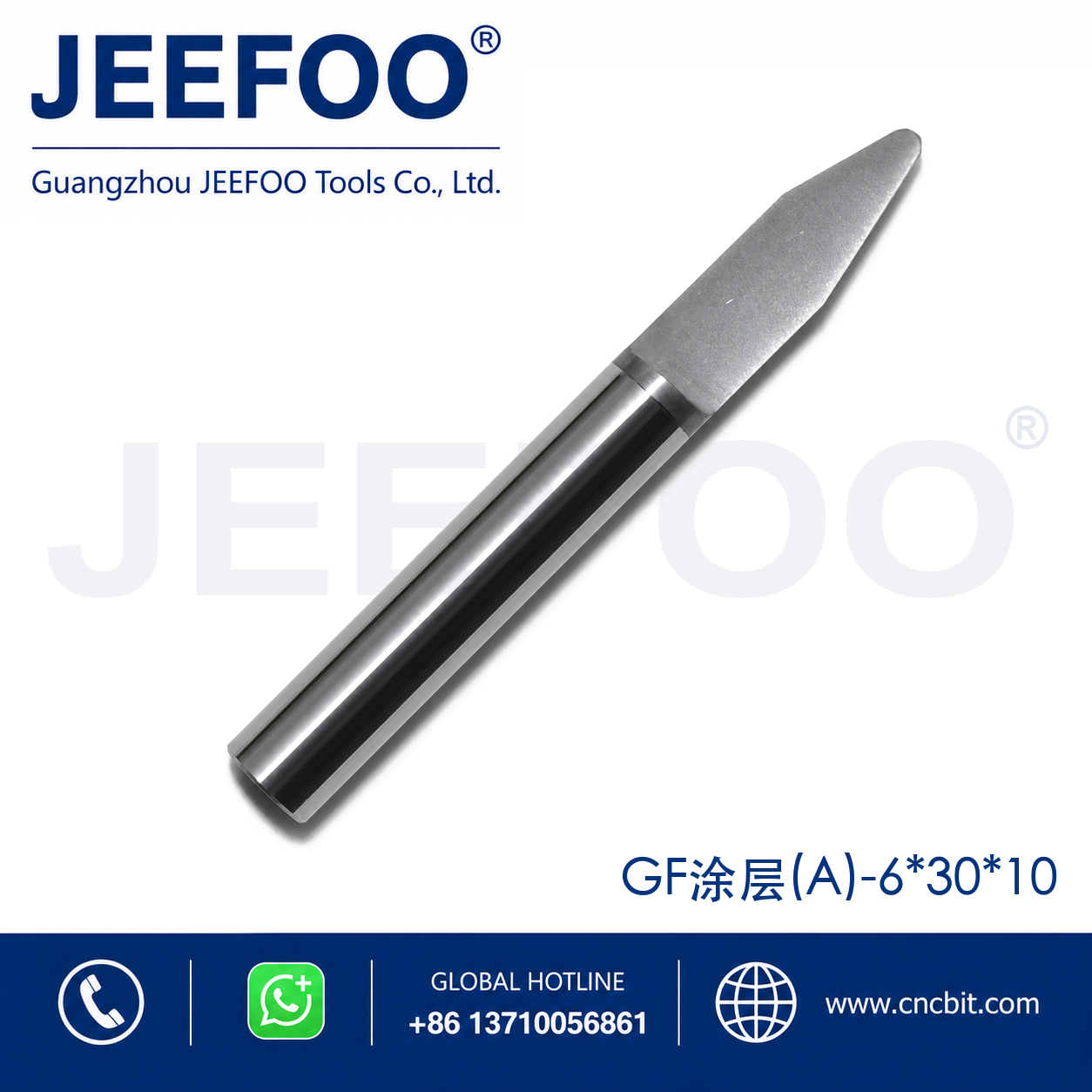

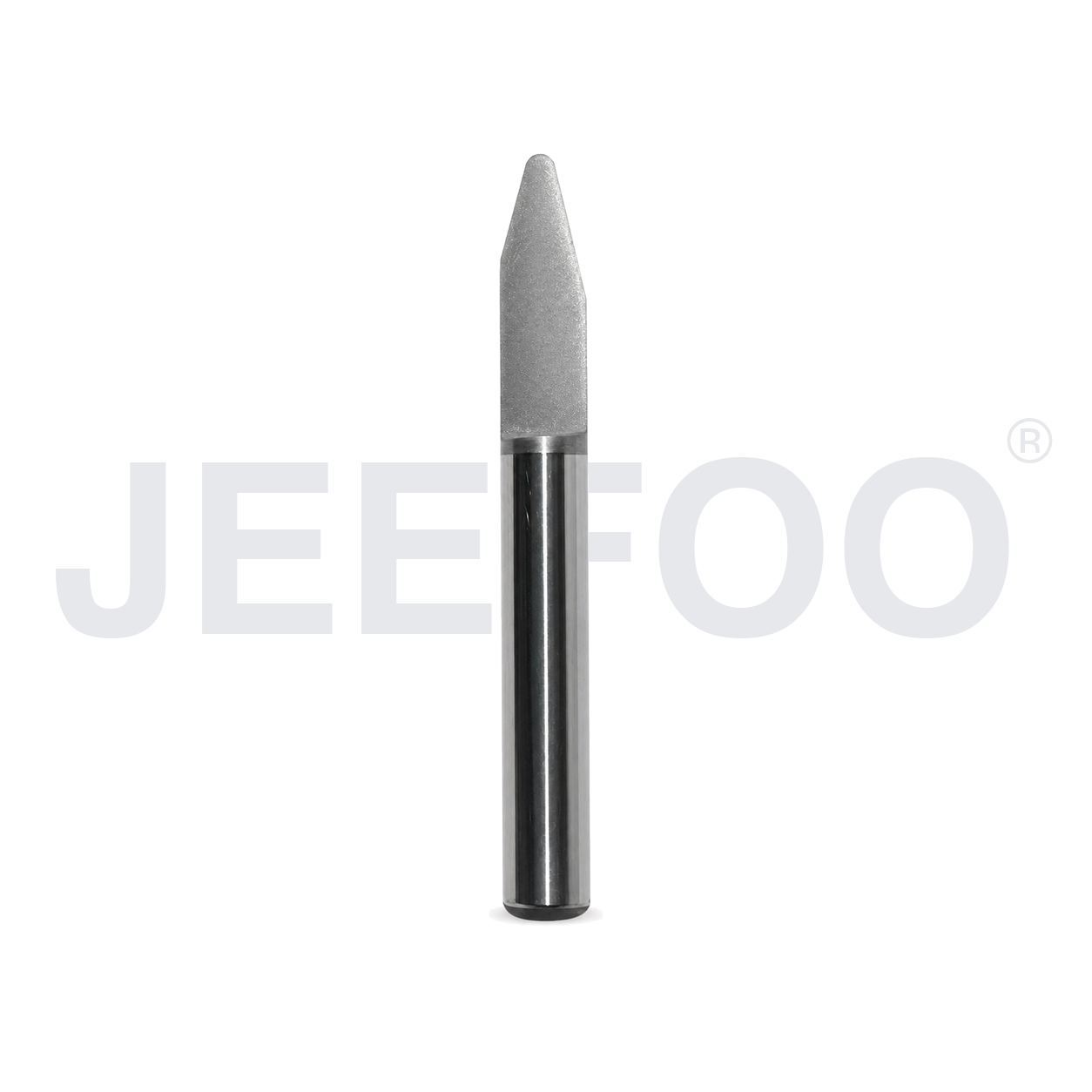

6x30xR1.0 radiused bottom engraving bit is a solid carbide precision cutter developed for fine three-dimensional relief, rounded grooves and detailed CNC engraving. Its radiused cutting tip blends surfaces smoothly while the tapered profile adds rigidity for controlled, accurate carving.
Applications: Acrylic, PVC, MDF, hardwood, density board, plastics and suitable non-ferrous materials. It is ideal for relief carving, lettering, curved channels, fine modeling and finishing.
Features: Ultra-fine tungsten carbide construction, precision-ground geometry, sharp polished cutting edges, stable chip evacuation and excellent wear resistance. The radiused bottom helps reduce visible tool marks on contoured surfaces.
Size: 6x30xR1.0
6x30xR1.0 Radiused Bottom Engraving Bit Performance
Use a clean, correctly sized collet and keep tool overhang short. Match spindle speed, feed and pass depth to the material and machine rigidity. A shallow finishing pass provides the smoothest relief surface and longest tool life.
