Long CEL Flat Bottom Engraving Bit: 6x100Lx70Hx0.4×30 Guide
The long CEL flat bottom engraving bit in 6x100Lx70Hx0.4×30 configuration is designed for deep CNC relief carving, detailed lettering and flat-bottom features where standard short tools cannot reach. Its extended geometry must be paired with rigid workholding, low runout and conservative cutting parameters.

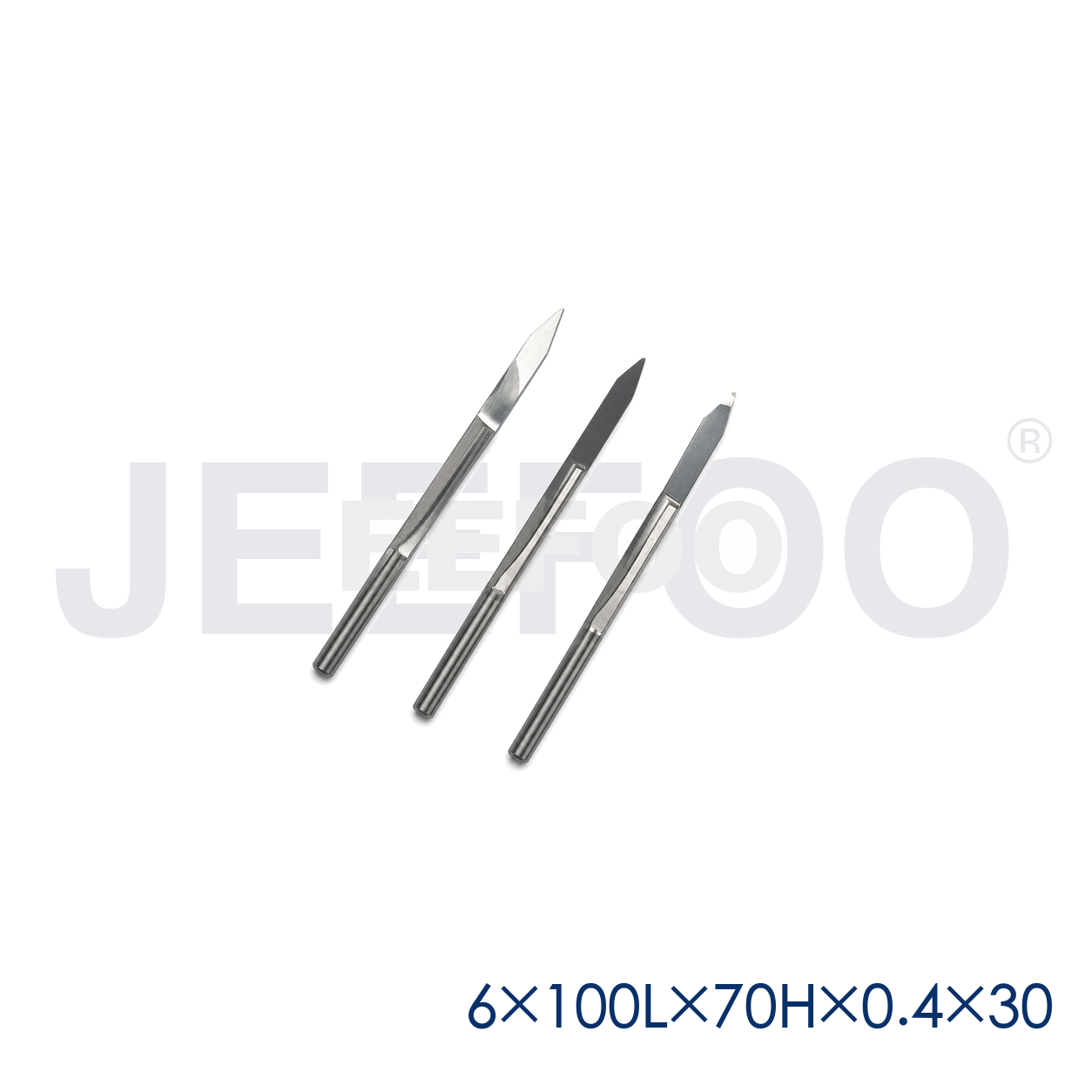

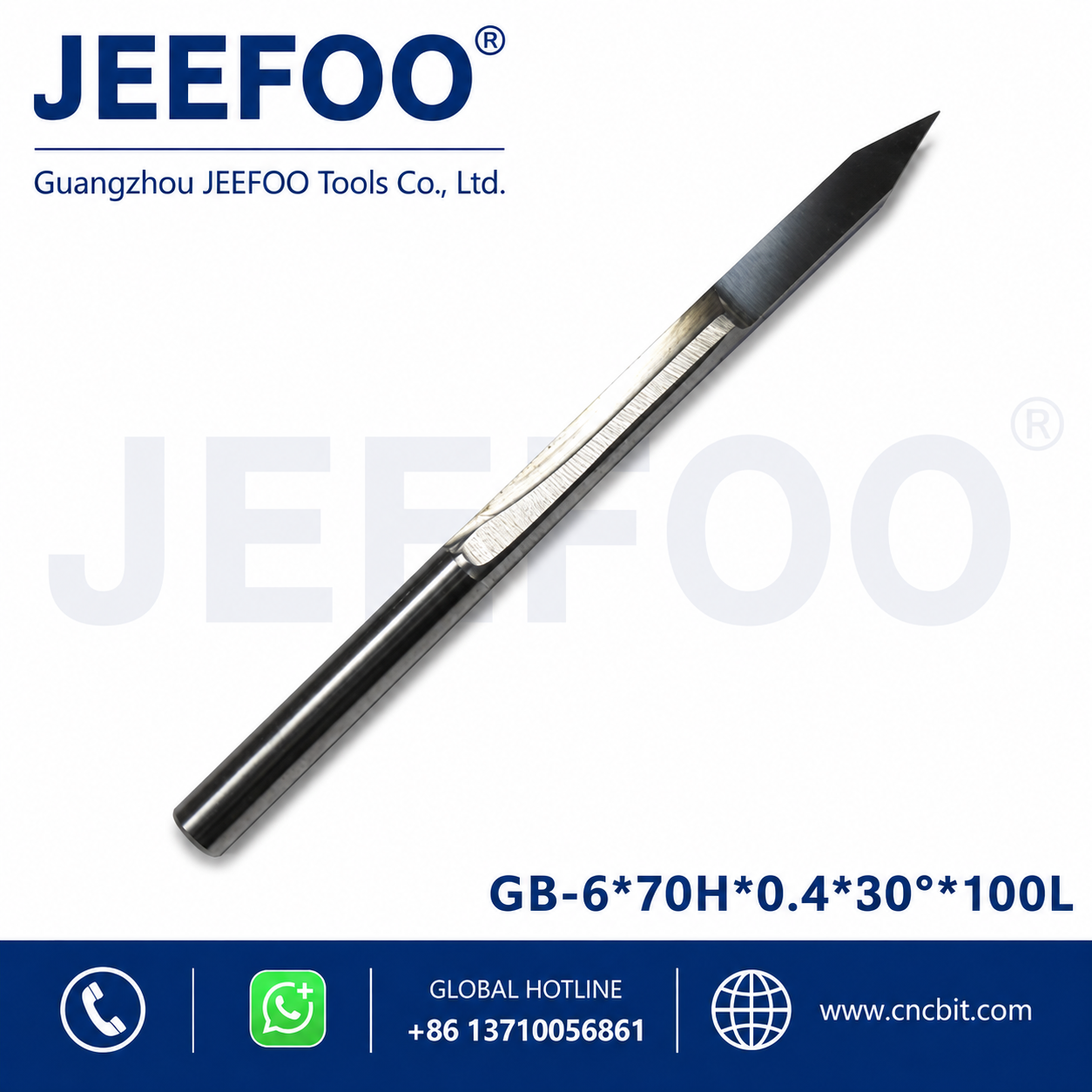

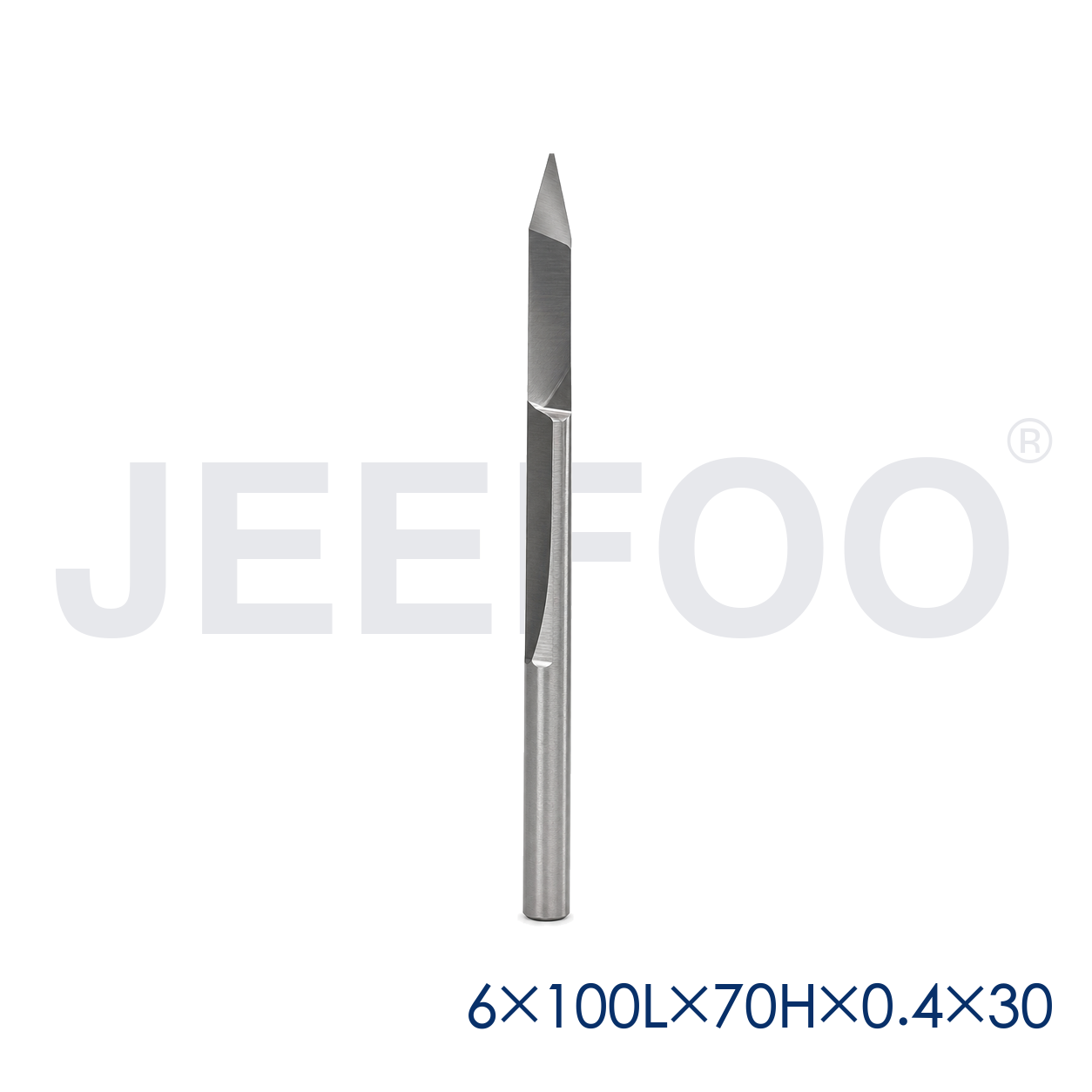

- Nominal shank: 6 mm
- Overall length: 100 mm
- Cutting height reference: 70 mm
- Tip reference: 0.4 mm
- Included angle reference: 30 degrees

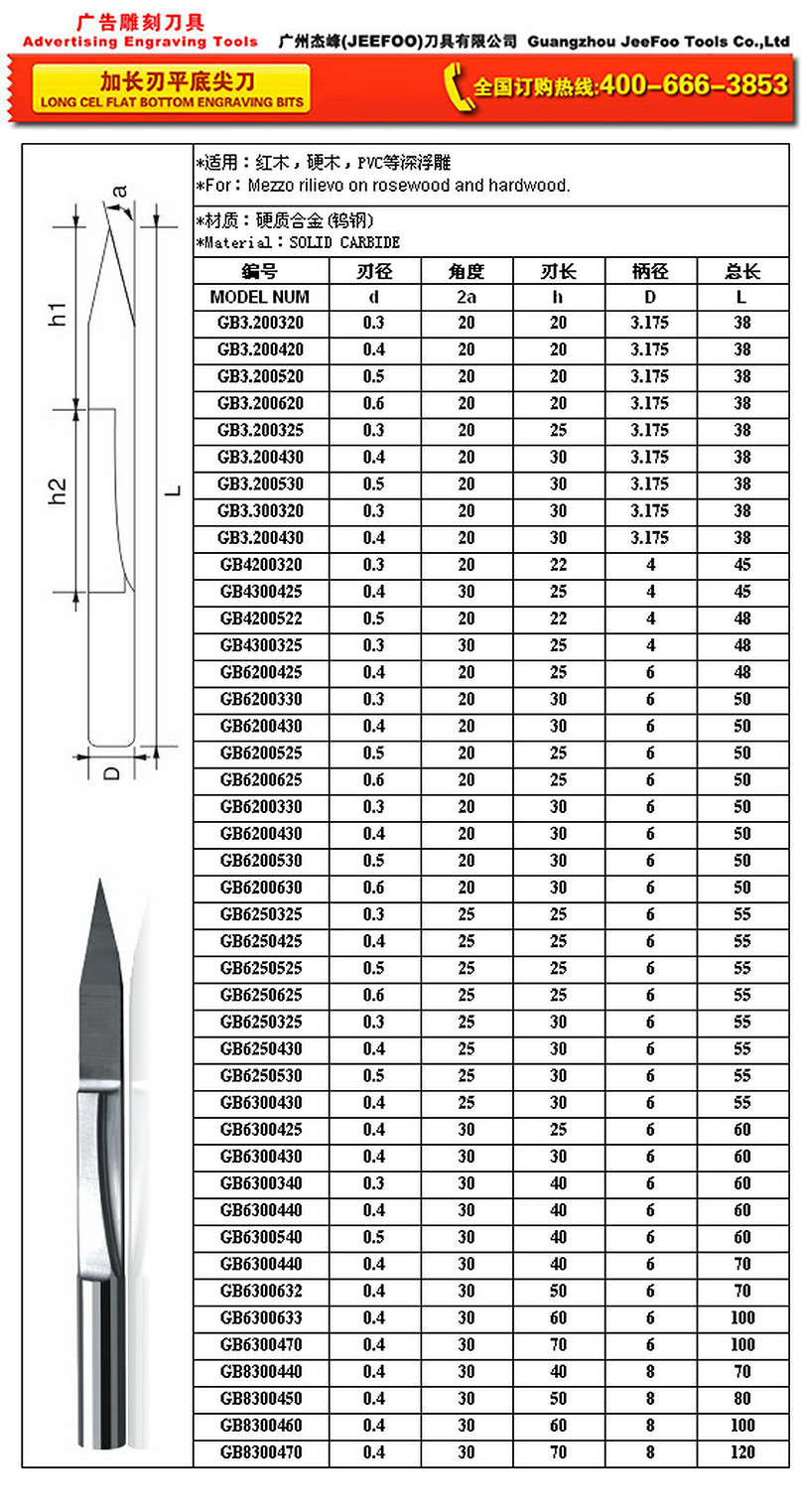

Confirm every dimension against the supplied drawing before ordering or setting CNC offsets. Naming conventions can differ between suppliers, so the machine operator should verify shank, tip, angle, cutting height and overall length.
Deep relief carving applications
A long CEL flat bottom engraving bit can create deep lettering, decorative reliefs, sign details, channels and narrow flat-bottom areas in compatible wood, MDF, plywood, acrylic and approved plastics. The long reach provides access, but it also increases leverage on the cutter. Use only the length required by the actual geometry.
Rigidity and runout control
Clean the collet, nut, shank and spindle taper before installation. Clamp the full safe shank area, minimize overhang and check that the collet matches 6 mm. Even small runout becomes significant at the narrow tip, causing vibration, uneven lines or breakage.
Feeds, speeds and stepdown
Begin with a shallow stepdown and a steady feed recommended for the workpiece and machine. Avoid dwelling because rubbing creates heat. For deep work, use staged roughing and finishing paths instead of asking the fine tip to remove the full volume in one pass. Maintain continuous dust or chip extraction so recutting does not damage the surface.
Toolpath strategy
- Rough large cavities with a stronger cutter when possible.
- Leave controlled finishing stock for the engraving tool.
- Use ramped entry rather than a heavy straight plunge.
- Verify clearance for the full 100 mm tool length.
- Run a short test before the final workpiece.
Flat-bottom quality
The narrow tip and controlled angle help define crisp internal details while the flat-bottom geometry supports clean channel floors. A level spoilboard, accurate Z zero and rigid fixture are essential. If the bottom varies, inspect surface flatness, spindle tram, tool runout and workholding before changing the program.
JEEFOO supply from Guangzhou, China
JEEFOO supplies CNC engraving and router tools from Guangzhou, China for workshops, distributors and equipment users. Buyers should provide the complete 6x100Lx70Hx0.4×30 notation, workpiece material, required depth, machine model and quantity. Browse the JEEFOO product range for related cutters.
Inspection and maintenance
Inspect the long CEL flat bottom engraving bit under magnification before each precision job. Remove resin with a carbide-safe method, store the cutter separately and replace it if the tip chips or line quality declines. Never touch a rotating cutter and always follow the CNC machine manufacturer’s guarding and operating requirements.
Frequently asked questions
Why use a long-reach engraving tool? It accesses deep relief areas that a short cutter cannot reach, provided rigidity and clearance remain safe.
Should this tool remove all roughing stock? Usually no. A stronger roughing cutter can remove bulk material before the fine engraving pass.
How should the 0.4×30 detail be interpreted? Treat it as a tip and angle reference, then verify the supplier drawing before programming.
Long Cel Flat Bottom Engraving Bit for Stable Deep Relief Cutting
This Long Cel Flat Bottom Engraving Bit is engineered for accurate V-shaped engraving, flat-bottom detailing and deep CNC relief work. The extended cutting geometry reaches recessed areas while the carbide body provides the rigidity needed for clean lines, controlled depth and repeatable production.
Application: acrylic, PVC, PE, nylon, aluminum composite panel, cork wood, two-color plate, hardwood, MDF and other common engraving materials.
Description: The V-shape carbide flat-bottom cutter is suitable for CNC router machines and woodworking engraving machines. High-quality carbide, precision grinding and a polished cutting edge support smooth entry, efficient chip removal and a dependable cutting experience.
Advantages: high-precision engraving, large chip-removal capacity, efficient 2D and 3D sculpture, clean flat-bottom details and strong wear resistance. Use a rigid collet, minimize tool overhang and confirm spindle speed and feed rate with a test pass before production.
The long-reach profile is especially useful for signs, decorative panels, relief carving, deep grooves and detailed woodworking. Correct dust extraction and machine guarding help maintain cutting quality and workshop safety.
Size: 6x100Lx70Hx0.4x30
