brazed diamond ball nose stone bit for Stone Carving
A brazed diamond ball nose stone bit from JEEFOO in Guangzhou, China combines a rounded ball-nose working profile with a durable diamond edge for relief, lettering and dimensional carving. The 6-to-4 mm tapered specification balances access, detail and shank support for controlled carving work.
Suitable Materials and Applications
- Marble, granite and compatible engineered stone
- Tombstone lettering and decorative line work
- Ceramic and tile contour engraving
- Three-dimensional relief and sculpted surfaces
Select the brazed diamond ball nose stone bit size according to the detail and channel width required. The rounded nose supports smooth transitions and three-dimensional contours, while the cutting reach must match the actual depth without creating unnecessary overhang.
CNC Setup for Accurate Engraving
Confirm the shank fits the collet, clean both mating surfaces and measure runout before machining. Secure the stone blank on a rigid, level bed. Start with a shallow test pass, moderate feed and conservative step-down, then adjust according to spindle load, vibration, sound and surface finish.
A brazed diamond ball nose stone bit should move continuously through the material. Excessive dwell creates heat and can polish the surface instead of cutting efficiently. Use wet cooling when the machine permits it, or effective dust extraction for approved dry processes.
Improving Detail and Surface Quality
Use separate roughing and finishing toolpaths for complex relief. Leave a small, consistent finishing allowance after roughing, then apply a reduced step-over for the final pass. Stable fixturing and low runout help the brazed diamond ball nose stone bit reproduce fine lines without chatter marks.
Safety and Tool Care
Stone and ceramic dust can be hazardous. Follow machine instructions and use suitable eye, hearing and respiratory protection. Inspect the tool before each job and stop if diamond coverage is damaged, the shank is bent or cutting performance changes suddenly.
JEEFOO Tool Selection Support
When requesting a brazed diamond ball nose stone bit, provide the stone type, machine model, spindle interface, required ball-nose size, cutting depth and finish requirement. JEEFOO can use this information to help confirm a practical brazed-tool configuration for production.
Frequently Asked Questions
Which ball-nose size should I choose? Choose the nose size from the smallest detail, channel width and surface radius in the artwork, then confirm adequate tool strength for the depth.
Can one tool rough and finish? It is possible on light work, but separate roughing and finishing strategies normally improve tool life and surface quality.
Explore more JEEFOO CNC engraving tools and consult the OSHA silica safety resource when planning stone machining.
Product Description

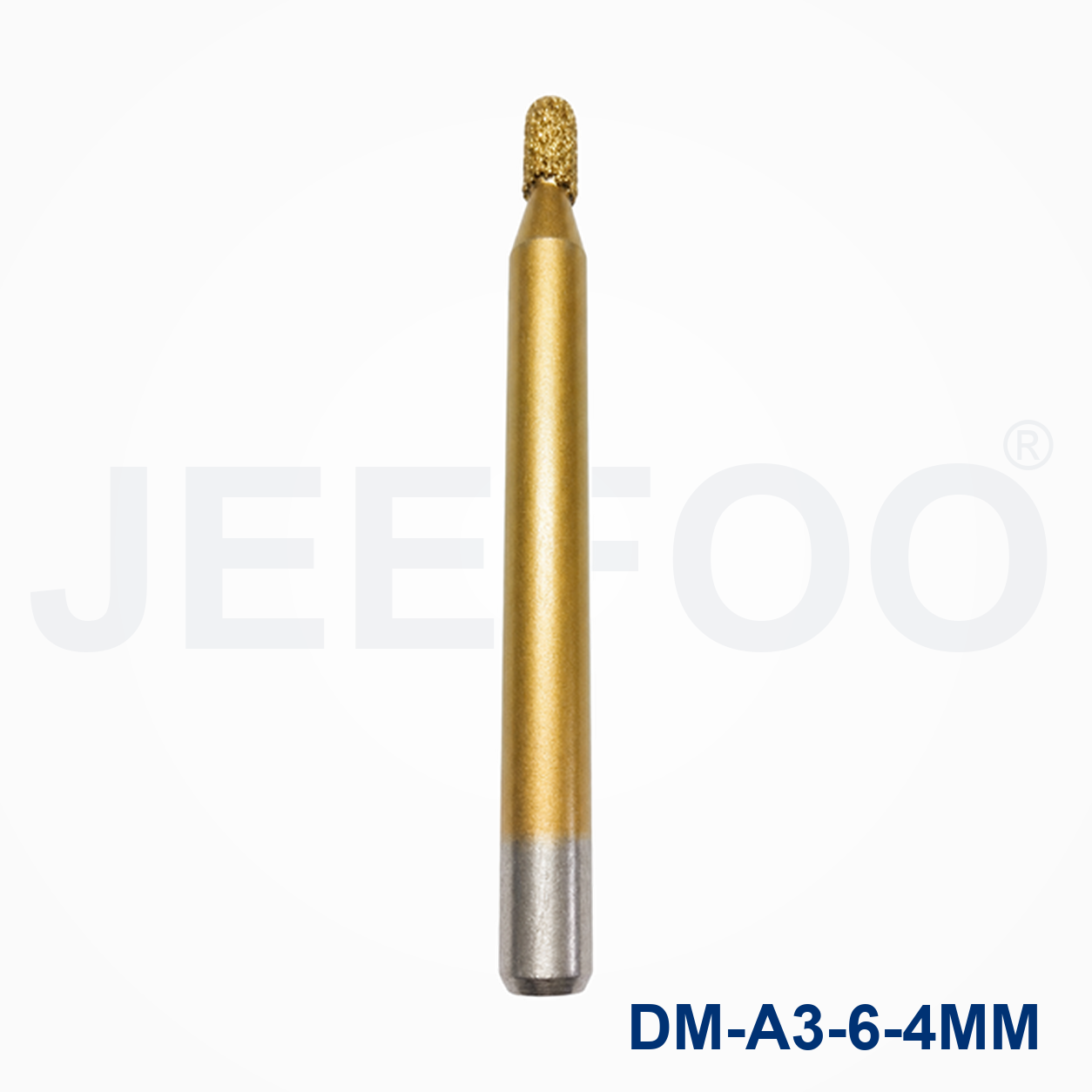

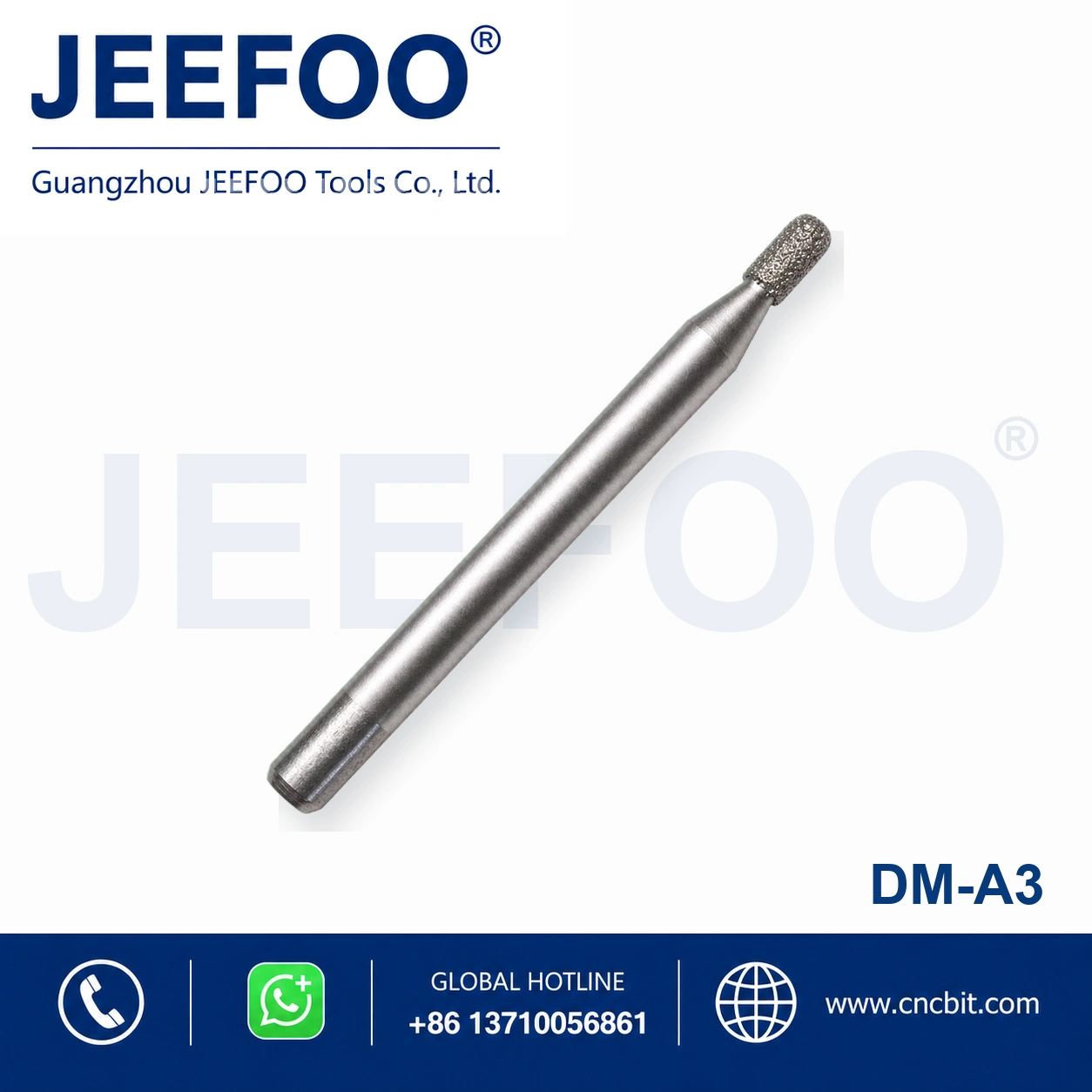

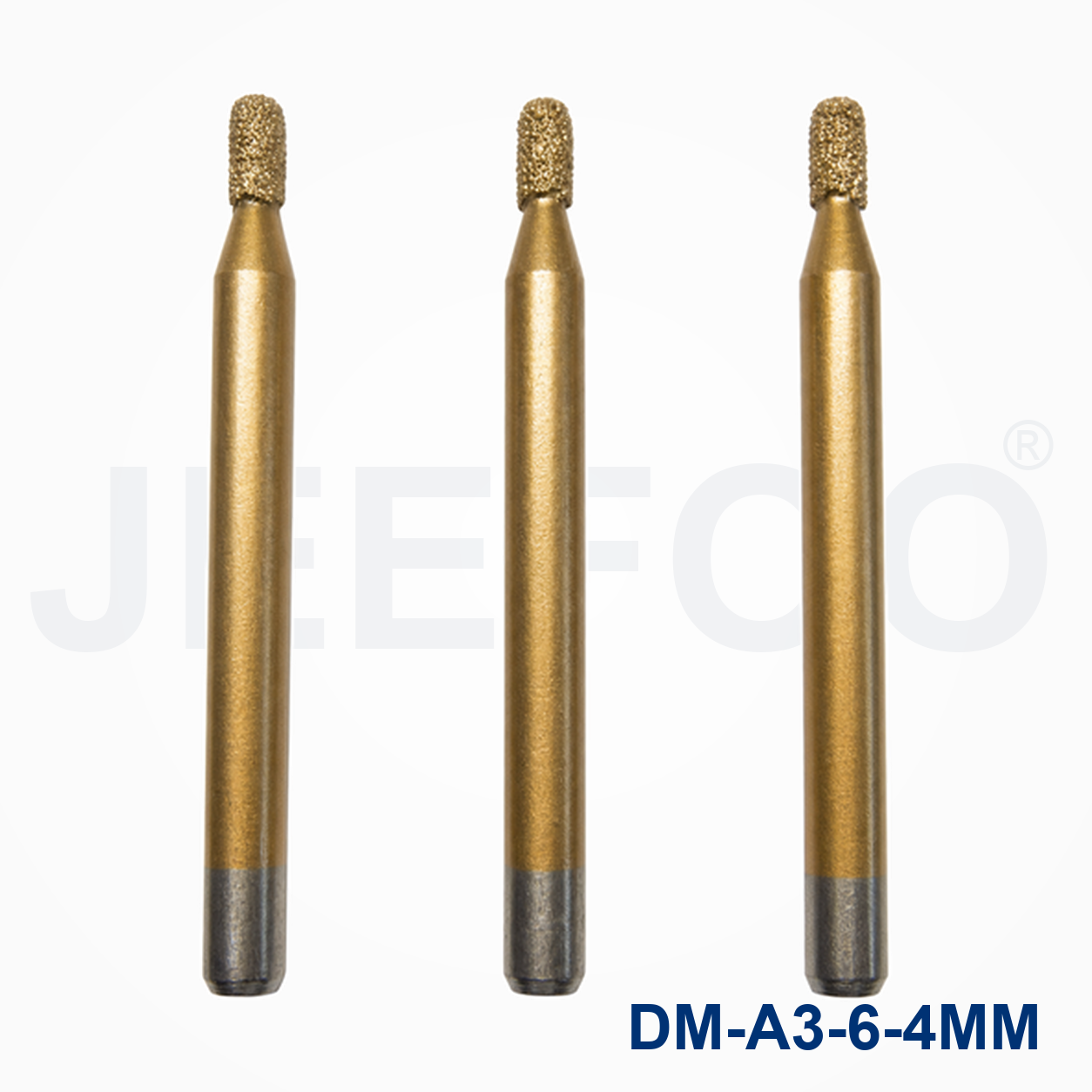

This A3 brazed diamond stone bit features a 6 mm shank, 4 mm ball head and 9 mm working length. The vacuum-brazed diamond surface provides aggressive material removal and dependable wear resistance on abrasive mineral materials.
Use this profile for CNC or handheld stone carving, shaping, grooving and relief work on granite, marble, ceramic and engineered stone. Match speed, feed and cooling to the profile and material.
Recommended Applications
- Granite and marble carving
- Stone shaping and grooving
- Ceramic and engineered-stone work
