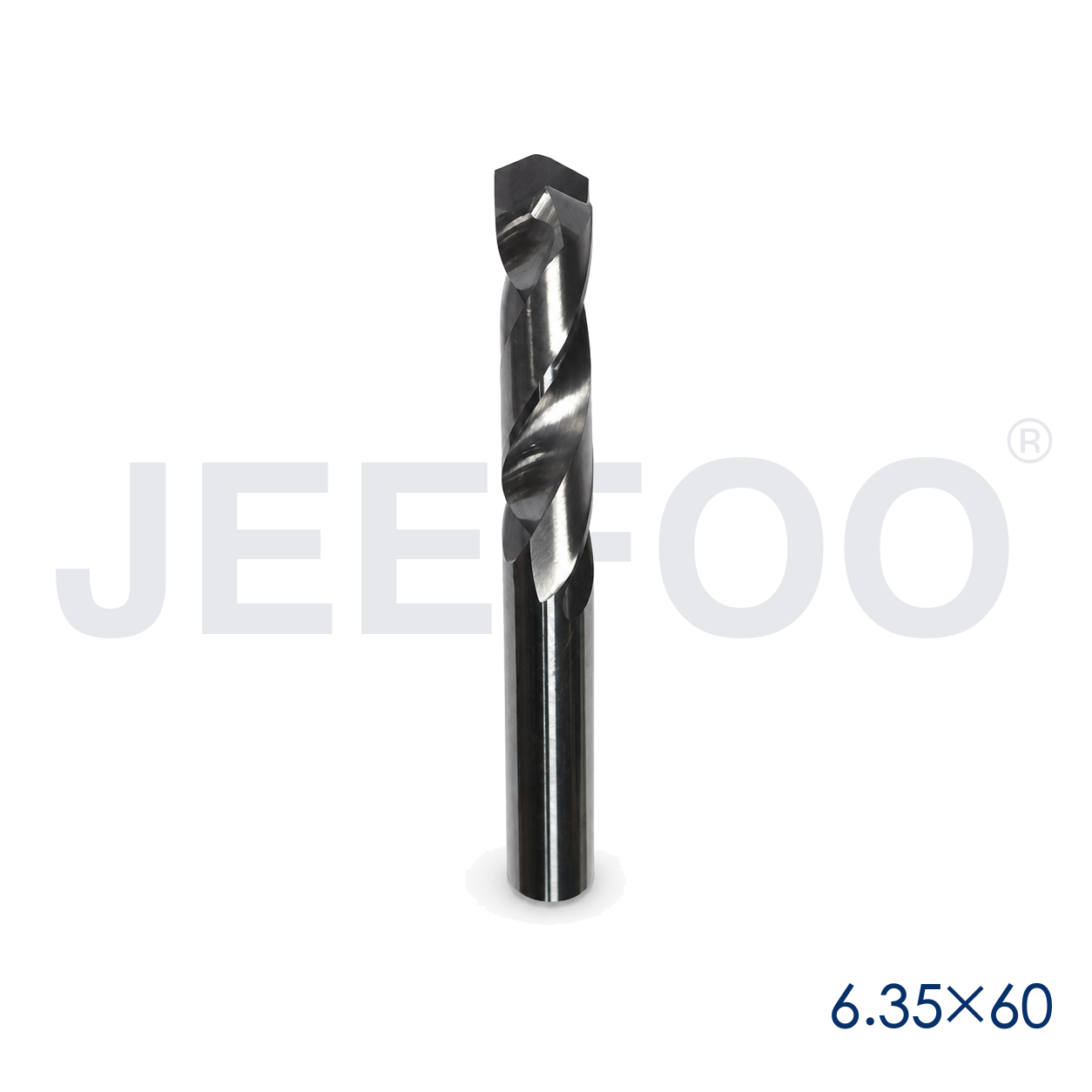

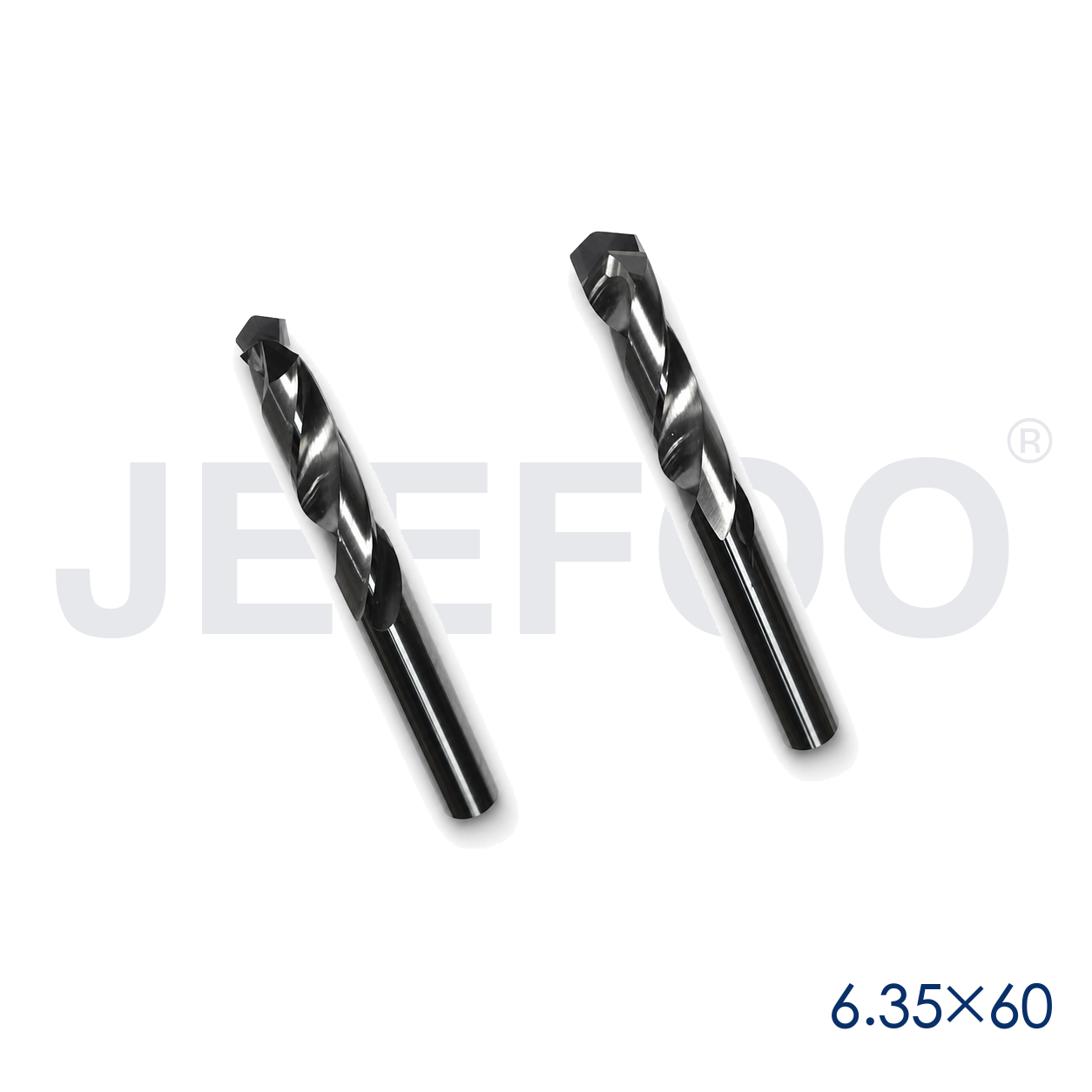

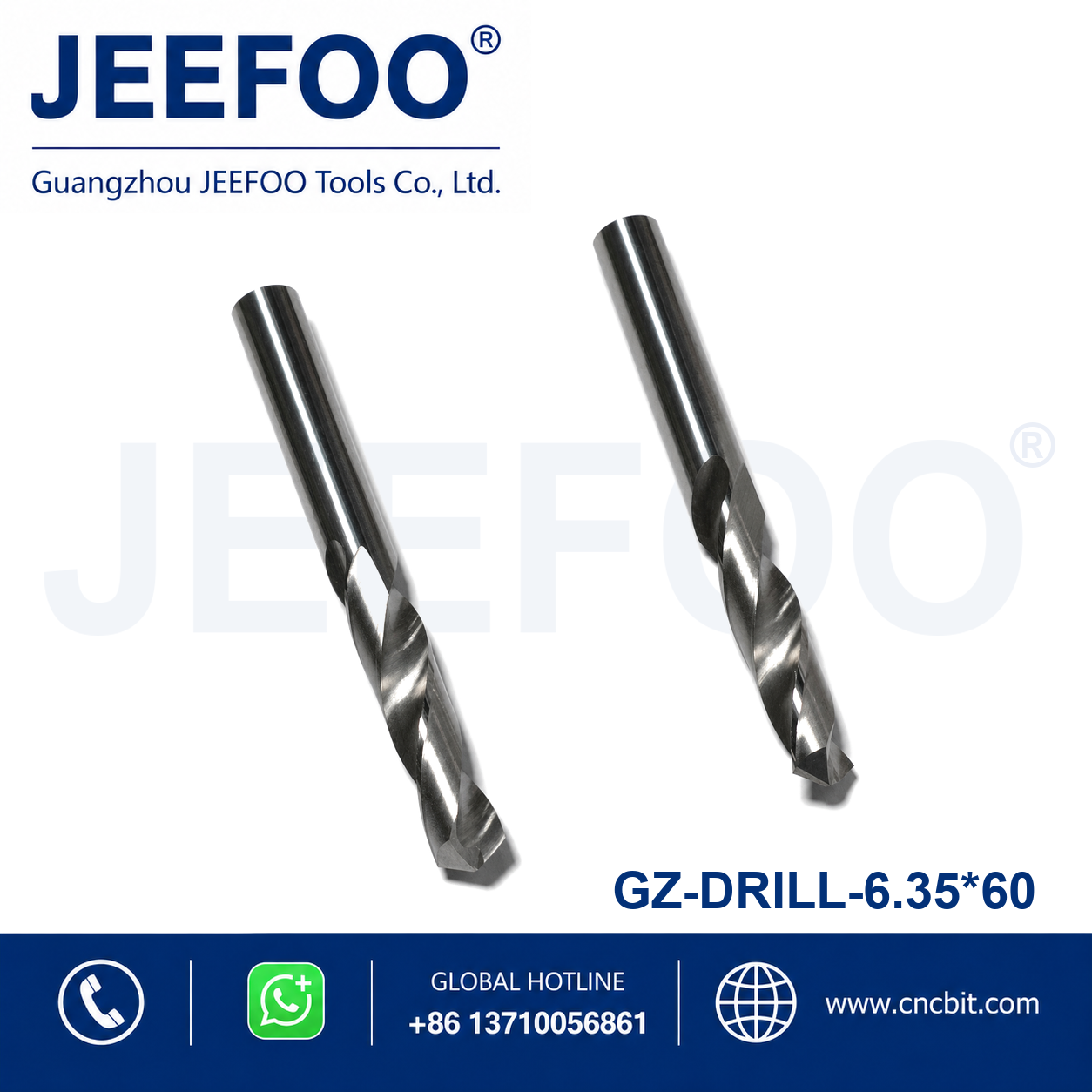

Straight shank twist drill in 6.35×60 size is designed for CNC router machines, engraving equipment and compatible drilling setups. The 6.35 mm shank fits a matching precision collet, while the 60 mm overall length provides practical reach for panel drilling, fixture work and repeated hole patterns.
6.35×60 Straight Shank Twist Drill Overview
The spiral flute geometry carries chips away from the hole and supports stable drilling when feed rate, spindle speed and pecking cycles are correctly selected. A compact straight-shank setup can help maintain alignment and repeatability on automated CNC programs. Actual suitability depends on the drill material, point geometry, workpiece and machine rigidity.
Key Features and Benefits
- 6.35 mm straight shank for a compatible clean precision collet.
- 60 mm overall length provides practical reach for panel and fixture work.
- Twist flutes support chip evacuation during controlled drilling cycles.
- Suitable for repeated CNC hole patterns and automated drilling programs.
- Standard and customized specifications can be discussed.
CNC Drilling Applications
A straight shank twist drill may be used for compatible woods, plastics, panels and selected non-ferrous materials after confirming the cutting geometry and parameters. Typical applications include mounting holes, pilot holes, fixture patterns, sign panels and repeated production drilling. Test a sample before machining finished parts.
Use an appropriate pecking cycle when the hole is deep enough to trap chips. Retracting the drill clears material and can reduce heat. Confirm the programmed depth, safe clearance and workholding before starting an automated sequence. Do not allow the drill to contact a fixture, spoilboard fastener or hidden component.
Machine Setup and Cutting Recommendations
Clean the collet and shank, minimize overhang and check spindle runout. Secure the workpiece firmly and verify that the surface is flat. Begin with conservative feed and spindle speed. Inspect chip shape, cutting sound, heat and hole quality, then adjust one parameter at a time and record the approved settings.
Effective chip evacuation is essential because packed chips can increase thrust and temperature. Air blast, extraction or suitable lubrication may help when permitted by the material, machine and workplace rules. Stop if unusual vibration, burning, oversized holes or poor chip flow appears. Consistent setup helps the same straight shank twist drill produce repeatable results.
Inspection and Storage
Inspect the point, cutting lips, flutes and shank before each job. Replace a chipped, bent or heavily worn drill. Clean residue with an appropriate workshop method, keep the tool dry and store it in a protective case. A documented inspection routine helps compare hole accuracy, tool life and cycle time.
JEEFOO Supplier in Guangzhou, China
JEEFOO supplies CNC drilling and cutting tools from Guangzhou, China for distributors, workshops and manufacturers. Send the workpiece, hole diameter, depth, machine details, quantity and packaging needs for selection support. Browse more JEEFOO CNC cutting tools for related applications.
Frequently Asked Questions
What does 6.35×60 mean?
It identifies the 6.35 mm shank and 60 mm overall length. Confirm the drill diameter, flute length and point geometry on the supplier drawing.
Can JEEFOO provide custom specifications?
Yes. Provide the material, hole details, machine, drawing and quantity. The Guangzhou team can review a standard or customized straight shank twist drill.
Product Description
This 6.35 mm straight shank twist drill provides a practical drilling solution for CNC router machines and engraving equipment fitted with a 6.35 mm collet. The 60 mm overall length offers useful reach for panel drilling, fixture work and automated hole patterns while maintaining a compact, stable setup.
The twist flute geometry supports chip evacuation during drilling and helps produce consistent holes when the tool is used with suitable pecking cycles and feed settings. It can be applied to compatible woods, plastics and non-ferrous workpiece materials after confirming the correct cutting parameters for the machine and material.
Recommended Applications
- CNC panel drilling and repeated hole patterns
- Fixture, jig and engraving-machine drilling
- Straight-shank applications using a 6.35 mm collet
