4×12 Two Straight Flute Bits Guide
4×12 two straight flute bits are solid-carbide CNC cutters for routing, slotting and profiling in MDF, plywood, foam, PVC, acrylic and compatible composite boards. Straight flutes provide a neutral axial cutting action, which can help limit lifting or downward pressure when workholding and chip removal are correctly managed.
Applications and Material Selection
- Slots and profiles in MDF, plywood and laminated panels
- Foam, EVA, PVC and compatible plastic sheets
- Signs, cabinet parts and 2D engraved components
- Jobs where neutral axial force is preferred
Confirm the exact board, plastic or composite material before production. Abrasive laminates, adhesive layers and filled plastics can change edge life and chip behavior. Test in the actual stock and inspect both faces for breakout, burrs, melting or delamination.
Understanding the 4×12 Specification
The size identifies a 4 mm cutting diameter and a 12 mm cutting length. Verify the product drawing for shank diameter, overall length and maximum usable depth. Program a safe step-down based on material, machine rigidity and engagement rather than assuming the full flute can be used in a single pass.
CNC Setup and Chip Control
Clean the collet and shank, confirm low spindle runout and clamp the workpiece on a flat spoilboard. Support thin sheet close to the cutting area. Begin with conservative depth and feed, then inspect chip size, cutting sound, spindle load and edge quality before increasing production speed.
Use effective dust extraction or clean air as approved for the material. Straight flutes do not actively lift chips like an upcut spiral, so clearing the slot is especially important. If the edge burns, melts or becomes fuzzy, check feed, speed, tool sharpness, chip packing and workpiece movement.
JEEFOO Tools from Guangzhou, China
JEEFOO supplies solid-carbide router tools from Guangzhou, China for distributors, sign makers and furniture manufacturers. Share the material, sheet thickness, required edge finish, machine and quantity when requesting 4×12 two straight flute bits. Explore related products on the JEEFOO cutting tools website.
For general background on programmed machining, see the reference on numerical control. Store the verified tool number, depth, feed, speed and chip-control method with the CNC program for repeatable production.
Inspection and Repeat Jobs
Inspect the first part for dimension, edge breakout, burrs, burning and surface lines. Confirm that the cutter clears clamps and fixtures throughout the toolpath. Save an approved sample and parameter record, and replace a damaged cutter rather than compensating with unsafe settings.
Frequently Asked Questions
When are straight flutes useful?
They provide relatively neutral axial force and can be useful when the workpiece must not be strongly lifted or pushed downward.
Can one setup cut every listed material?
No. Board density, plastic type, laminate and adhesive layers affect chip load and heat, so approve a test cut for each material.
What should be checked before production?
Inspect the edge, clean the shank and confirm low runout before using 4×12 two straight flute bits.

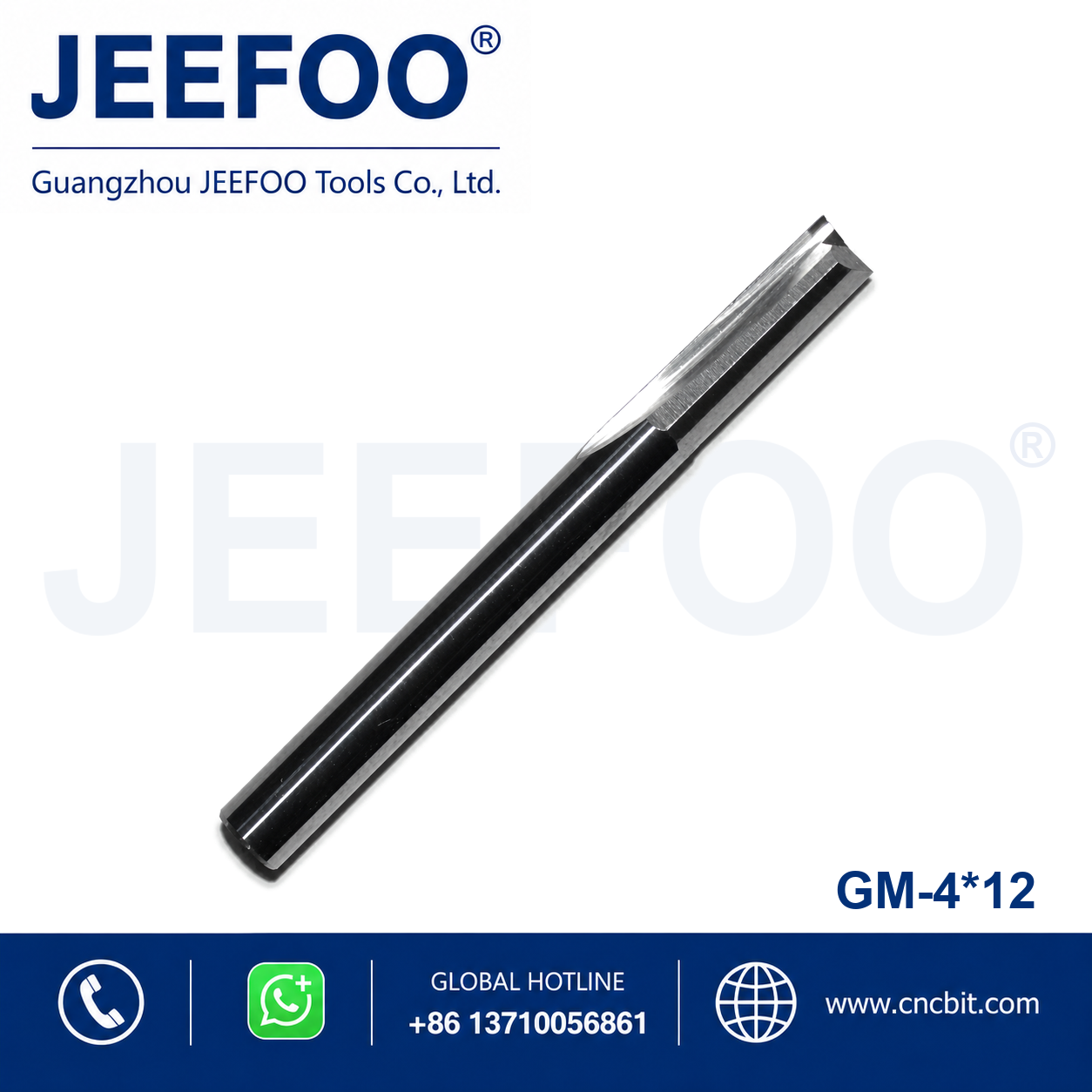

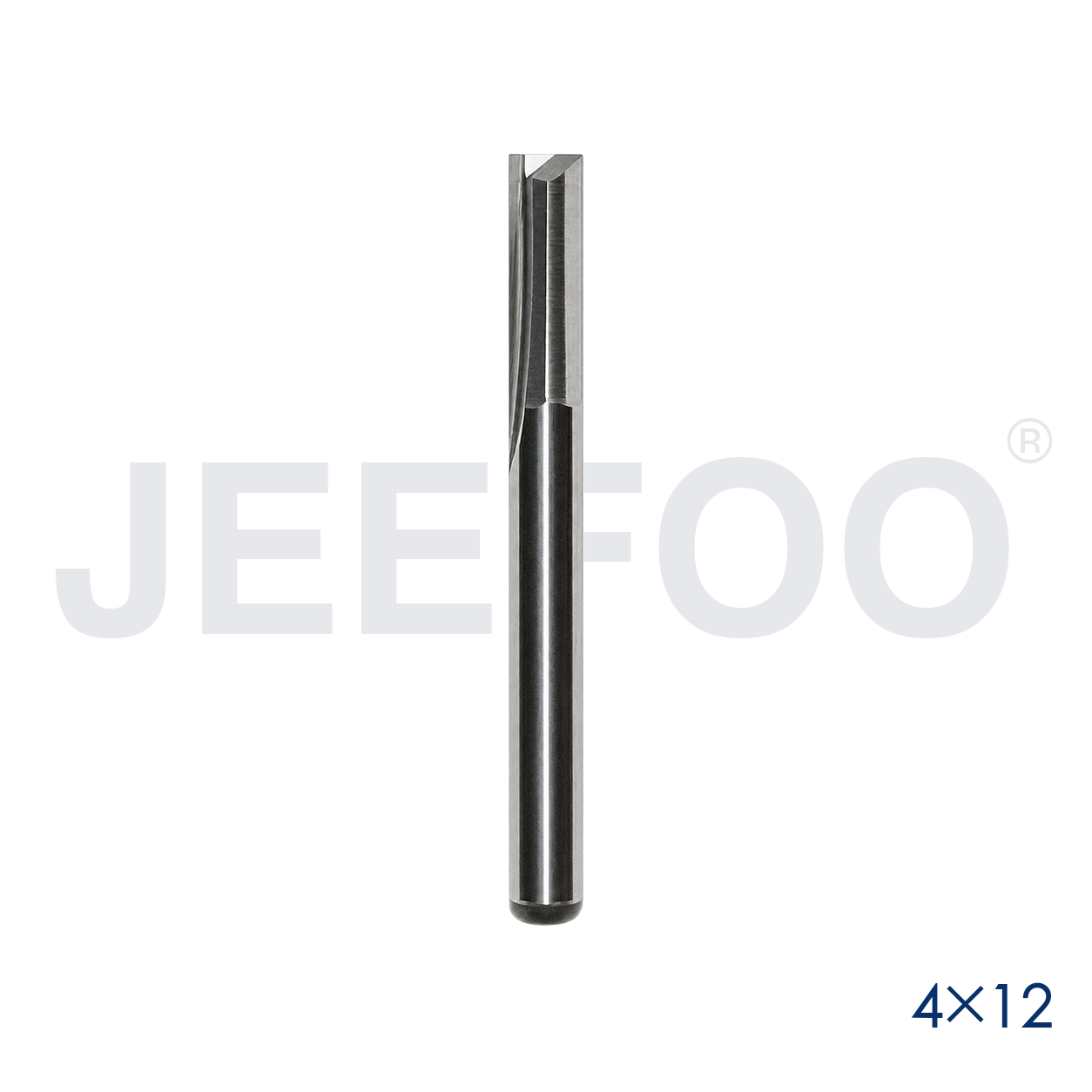

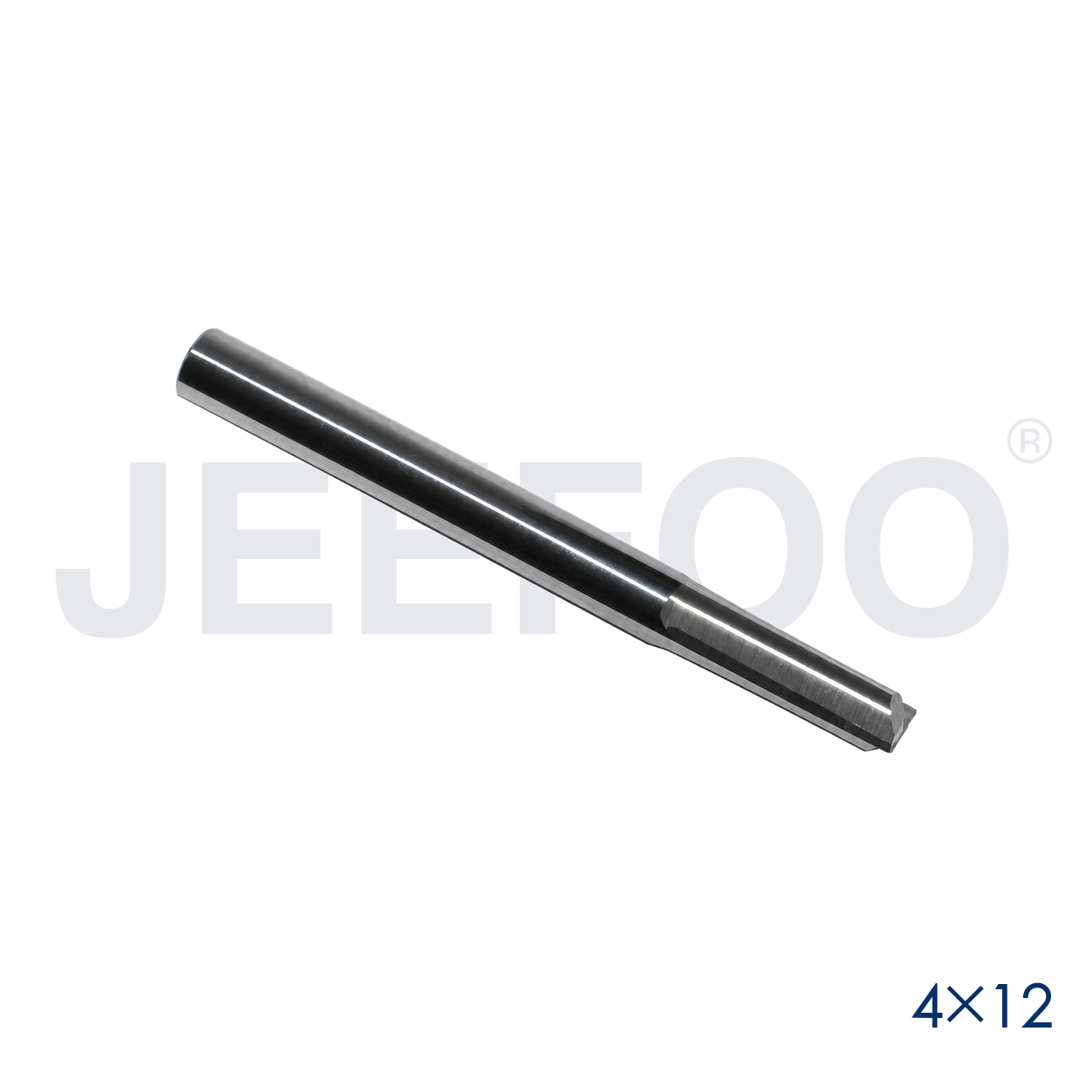

Two Straight Flute Bits for CNC Cutting
Jeefoo Tools CNC router bit, straight router bits and woodworking bits for MDF, Polywood, Formica and laminated board, A series.
Specification
- Brand: JeeFoo Tools
- Name: Two Flutes Straight Carbide Cutters
- Tool Materials: top-quality tungsten carbide
- Size: 4×12
Main Application
2D engraving and cutting for foam, EVA board, multi-layer board, plywood, MDF, composite boards, hard wood, organic plates, PVC, acrylic, double-color board and ABS.
Features
- Sharp cutting edge without burrs and with excellent chip removal.
- Special design combines a hard cutter body and high-class cutting edge for durability and resistance to breakage.
