3.175×60 Degree Engraving Bit CNC Guide
The 3.175×60 degree engraving bit is a solid carbide flat-bottom V cutter with a 0.2 mm tip for detailed CNC carving, lettering and relief work in wood, MDF, plywood and compatible plastics. Its 60-degree profile supports clear line definition while the flat tip improves bottom detail compared with a sharp-point V bit.
Applications and Setup
- Fine lettering, signs and decorative grooves
- 3D woodworking relief and panel carving
- MDF, plywood, solid wood and selected plastic engraving
- Flat-bottom details requiring a controlled 0.2 mm tip width
Use a clean precision collet for the 3.175 mm shank, minimize tool extension and clamp the workpiece securely. Program the included angle and tip width correctly, then begin with conservative depth and feed values. Inspect line width, bottom finish, chip shape, spindle load and vibration. These practices apply to CNC numerical control routers and engraving machines.
JEEFOO Quality and Guangzhou Supply
JEEFOO supplies carbide engraving cutters from Guangzhou, China. Each 3.175×60 degree engraving bit should be checked for shank diameter, 60-degree included angle, 0.2 mm tip, edge condition and model identification before packaging. Visit the JEEFOO CNC tools homepage for related engraving bits and company contact information.
Inspection and Safe Operation
Inspect the carbide tip for chips or cracks, confirm the collet is clean and verify sufficient shank engagement. Use machine guarding, eye protection and suitable dust extraction. Stop machining if vibration, unusual noise, excessive heat or a damaged cutting edge appears.
3.175×60 Degree Engraving Bit FAQ
What does the 0.2 mm tip control?
The tip width influences the narrowest flat-bottom detail the cutter can produce. Actual results also depend on runout, depth, material and machine accuracy.
Why choose a 60-degree engraving angle?
A 60-degree profile balances narrow detail with useful edge strength for lettering, grooves and relief work. Confirm the angle required by the design before machining.
Jeefoo Flat Bottom CNC Router Tools,V Shape Engraving Bit, 3D Woodworking Relief,Carving Tools

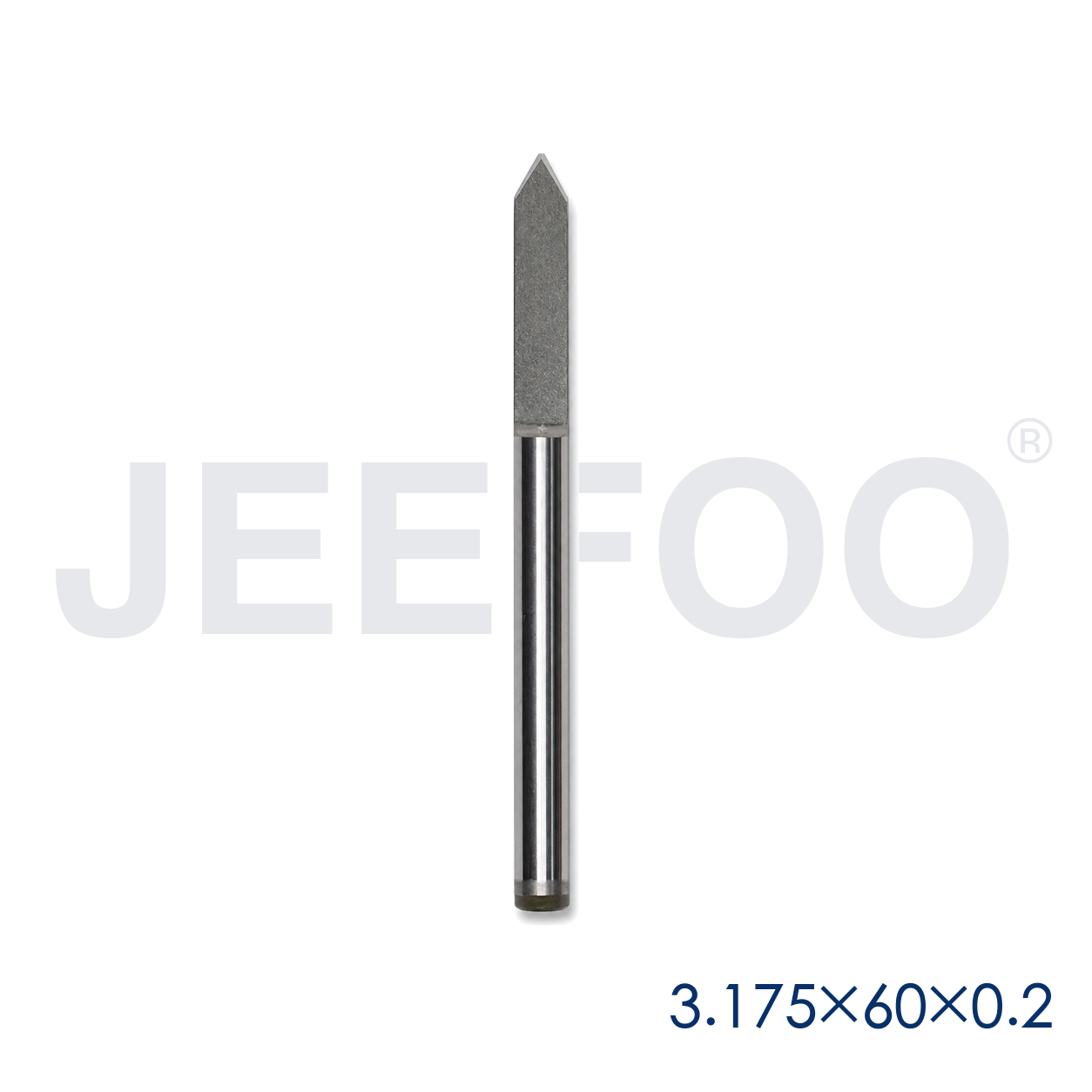

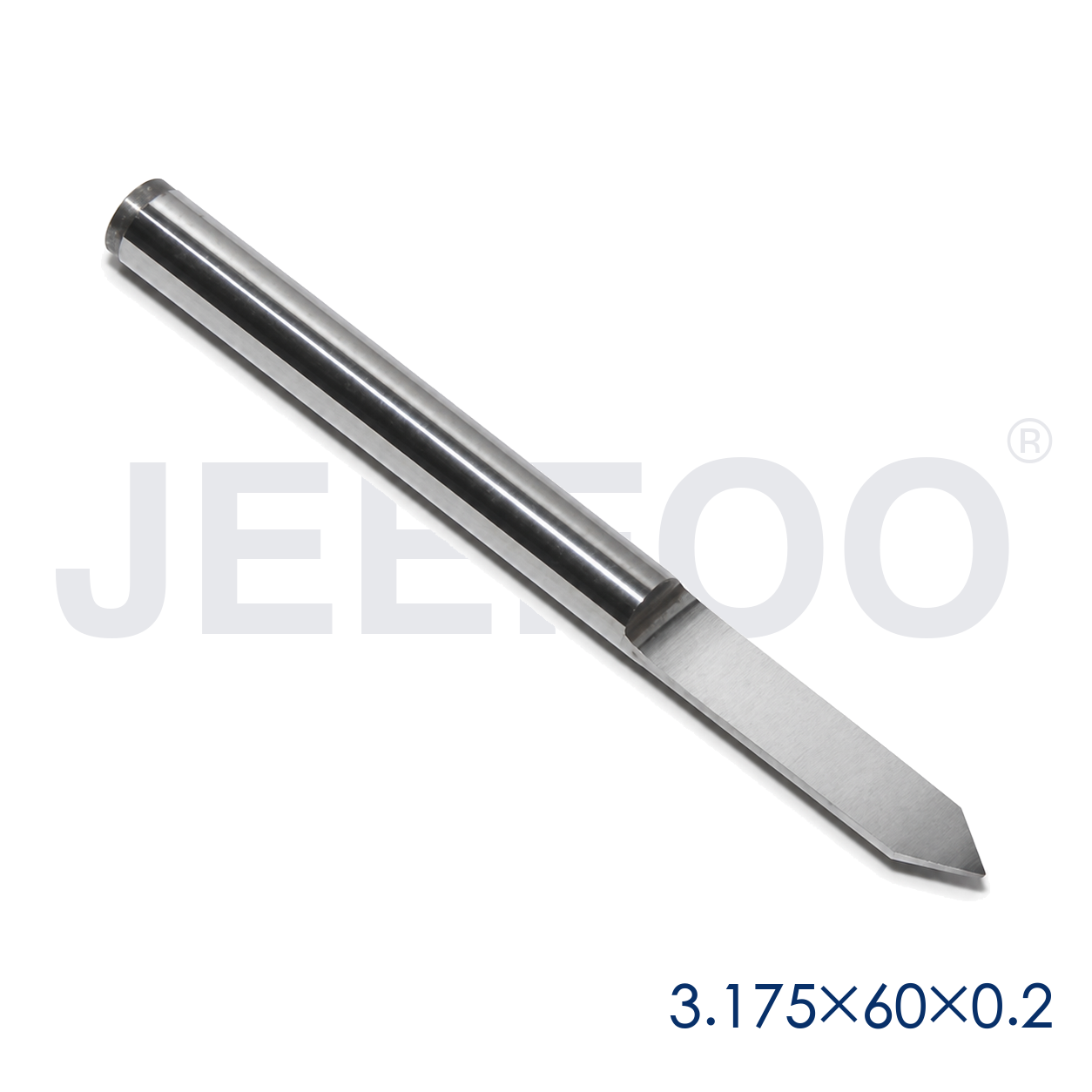

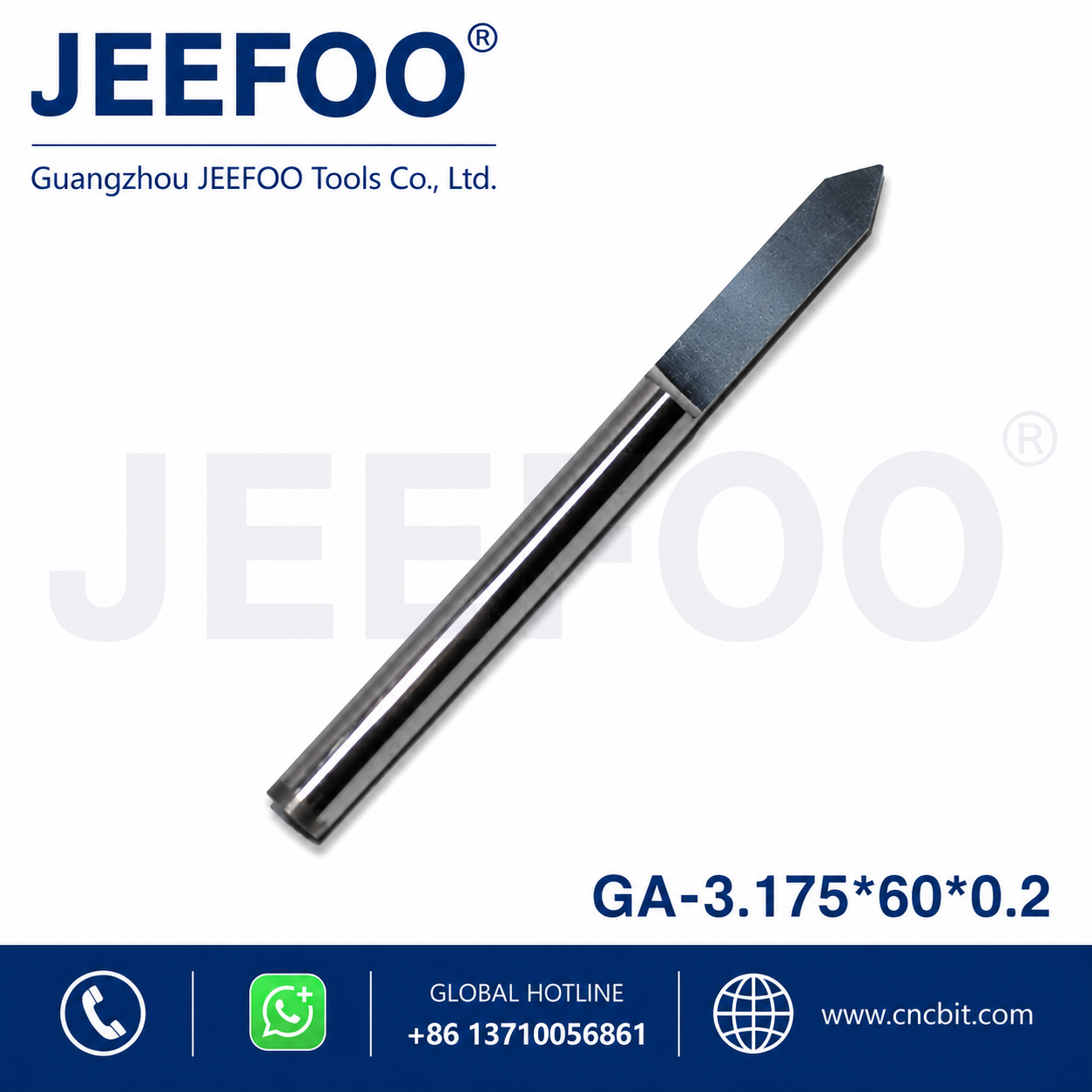

3.175*60degree*0.2 Flat Bottom Wood Engraving Router BitsApplication:
Acrylic , PVC , PE ,Nylon , Aluminum composite panel , cork wood ,Two-color,plate,Acrylic,PVC,Hardwood,MDF
Description:
V-shape carbide flat bottom engraving bits use for CNC routermachine and woodworking routermachine, It is long-lasting bits are made from high quality carbide with high precise, easy cutting experience.
3.175*60degree*0.2 Flat Bottom Wood Engraving Router BitsAdvantage:
1,High-precision tool grinding/Engraving
2,large capacity Chip elimination, high efficiency and good quality of products
3,High quality tools for 2D sculpture, 3D sculpture
3,Brand new and unused
4,Size: 3.175 x 60degree x 0.2
