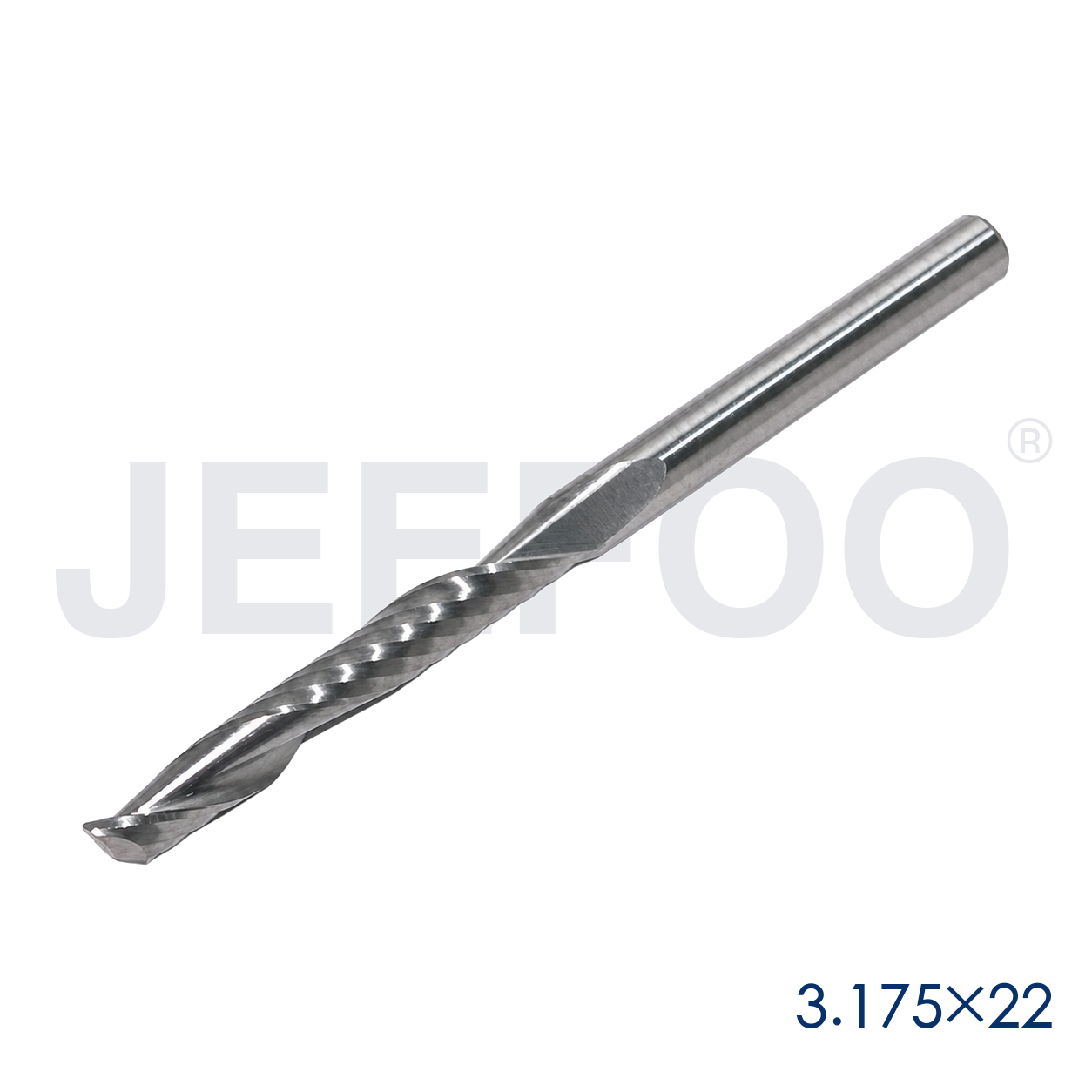

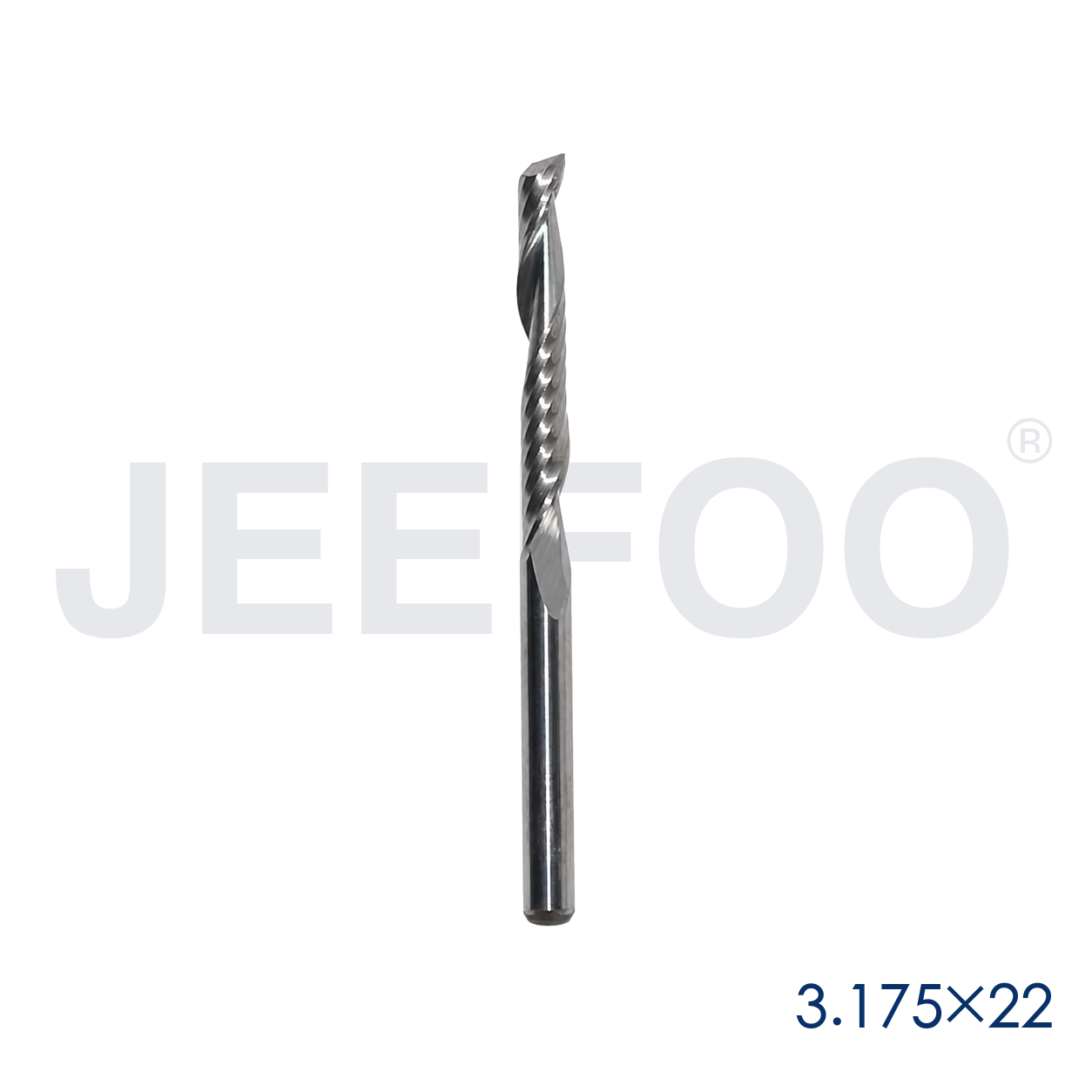

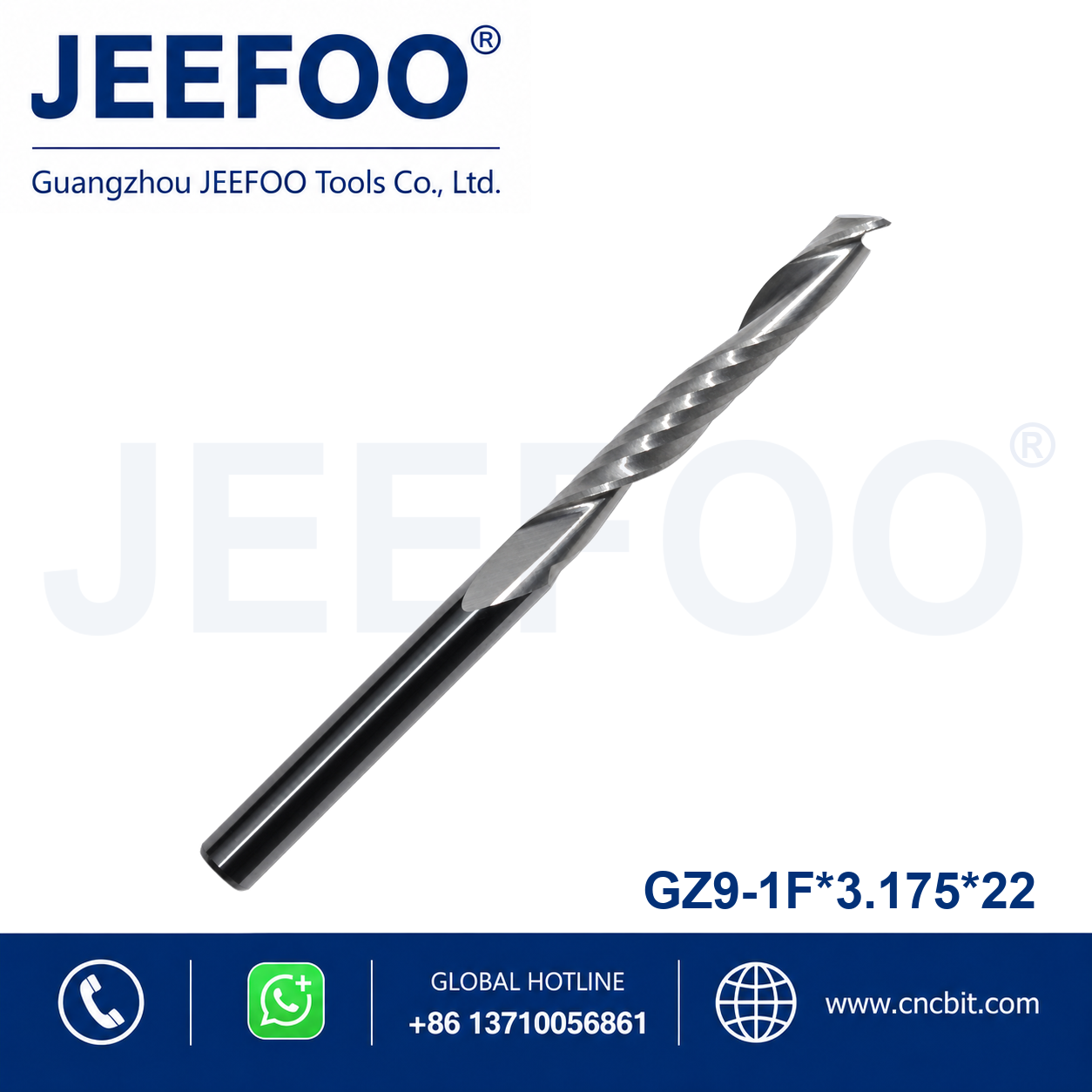

3.175×22 Single Flute Spiral Profiling Cutter Guide
The single flute spiral profiling cutter in 3.175×22 size from JEEFOO in Guangzhou, China are solid-carbide single-flute CNC profiling tool for engraving, fine profiling and narrow grooves in acrylic, PVC, MDF, double-color sheet, plywood, selected wood and compatible plastics. Its 3.175 mm diameter and 22 mm cutting length support profiling, copying and edge work, while the open spiral flute provides space for chip evacuation.
Product specifications
- Cutting diameter: 3.175 mm
- Cutting length: 22 mm
- Geometry: single spiral flute
- Geometry: one spiral flute
- Material: wear-resistant tungsten carbide
Applications for fine CNC work
- Small lettering and detailed sign engraving
- Narrow grooves in acrylic and PVC sheet
- Fine profiles in MDF, plywood and double-color board
- Precision trimming of compatible plastic components
Why use one spiral flute?
A single cutting edge leaves a relatively large flute space for chips. Efficient evacuation helps reduce recutting, rubbing and heat, especially in plastics. Because the cutting diameter is only 1 mm, stable clamping, low runout and controlled engagement are important. Avoid heavy full-width cuts that can deflect or overload the tool.
CNC setup guidance
Clean the collet and 3.175 mm shank before installation. Keep overhang as short as the required reach permits, secure the workpiece and verify clearance around clamps. Begin with conservative spindle speed, feed and depth per pass. Observe chip shape, sound, spindle load and surface quality before adjusting parameters.
Use dust extraction or a machine-approved air system to remove chips. When cutting acrylic or PVC, maintain a feed that creates chips instead of melted residue. When machining wood products, good extraction reduces recutting and keeps the narrow flute clear. Always test a new material on scrap before production.
Tool care and ordering checks
Confirm the shank, cutting diameter, cutting length and overall reach before ordering. After use, remove debris and inspect the edge under good light. Stop if the tool is chipped, bent or producing abnormal vibration. Record successful parameters for repeat work rather than relying on settings from a larger cutter.
JEEFOO manufacturing in Guangzhou, China
JEEFOO supplies CNC router and engraving tools from Guangzhou, China, for sign makers, workshops, distributors and machine users. Standard or customized dimensions can be reviewed according to material, machine and application. Browse more JEEFOO CNC cutting tools or review general router machining information when planning a new process.
Frequently asked questions
What does 3.175×1.0x4 mean?
It identifies a 3.175 mm shank, 1.0 mm cutting diameter and 4 mm cutting length.
Which materials are suitable?
Acrylic, PVC, MDF, double-color sheet, plywood and selected plastics or wood products are typical after a cutting test.
Can JEEFOO provide another size?
Yes. Provide the material, machine, required dimensions and quantity for technical review.
Inspect the single flute spiral profiling cutter before production and test the template, bearing or programmed toolpath on scrap material. Use material-specific feeds, speeds and chip evacuation.
single flute spiral profiling cutter is designed for stable CNC machining, clean cutting and dependable tool performance.
<single flute spiral profiling cutter CNC Applications
!– wp:paragraph –>A compact solid carbide cutter for precise profile machining and clean contour work.
Suitable for professional engraving, milling and precision processing with compatible CNC equipment.
Size: 3.175x22
