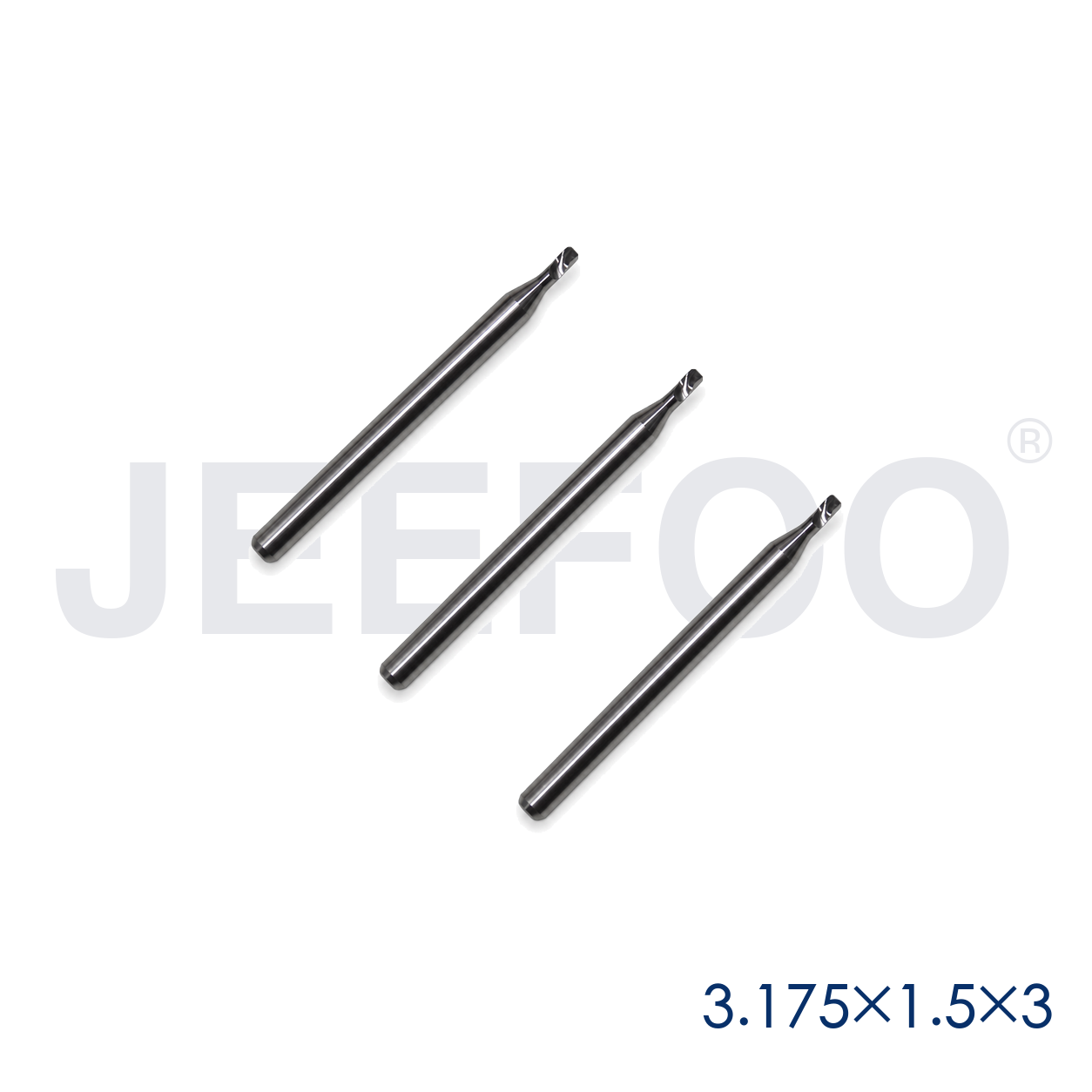

3.175×1.5×3 Down-Cut Router Bit Guide
A 3.175×1.5×3 down-cut router bit uses a left-helical single-flute geometry to direct chips toward the lower side of the cut. This action can support a cleaner top edge in wood, MDF, acrylic and compatible sheet materials when the tool, feed and spindle speed are correctly matched. Because chips are pushed downward, clearance beneath the workpiece and an effective extraction plan are important.
Applications and Down-Cut Action
- Top-edge-sensitive profiles in wood, MDF and plywood.
- Acrylic, PVC, PP, PE and compatible engineering plastics.
- Shallow grooves, profiles and small-component CNC cutting.
- Sign, display, cabinet and furniture production.
- Selected aluminum-profile work after machine and parameter suitability are confirmed.
The downward chip direction helps press the top surface fibers or sheet edge toward the workpiece, but it can also pack chips into deep slots if extraction is inadequate. Use shallow passes where necessary and make sure the cutter does not trap debris below the workpiece. General principles of computer-controlled cutting are described in this numerical control reference.
CNC Setup and Chip Control
Clean the 3.175 mm collet and tool shank, insert the cutter to a safe depth and keep overhang short. Confirm the 1.5 mm cutting diameter and 3 mm cutting length in the CAM library. Secure the workpiece on a suitable spoilboard and preview the full toolpath for fixture and underside clearance. Begin with a shallow test cut using conservative parameters suited to the material and machine rigidity.
Monitor chip shape, sound, spindle load and edge quality. Use dust extraction or air flow that does not interfere with safe operation. If chips compact in the groove, the cutter produces burn marks, or the top edge begins to fuzz or chip, stop and inspect feed, spindle speed, depth of cut, runout and extraction. Never force a damaged or worn tool through the material.
JEEFOO Supply from Guangzhou, China
JEEFOO supplies solid-carbide down-cut and single-flute CNC cutters from Guangzhou, China for distributors, sign makers and manufacturing workshops. When requesting a quotation, provide the 3.175×1.5×3 specification, material, machine type and required edge quality. These details help confirm flute direction, dimensions and suitable standard or customized options. Visit the JEEFOO CNC cutting tool homepage for related router bit categories.
Inspection and Safe Operation
Inspect the cutting edge for chips, cracks, resin and unusual wear before installation. Check runout and verify that the tool matches the CAM entry. Cut a sample, then examine dimensions, top-edge clarity, burrs and surface finish. Save approved settings for repeat jobs. Stop immediately if cutting sound, load or chip formation changes unexpectedly, and replace a damaged cutter promptly.
3.175×1.5×3 Down-Cut Bit FAQ
What is the benefit of down-cut geometry?
It directs chips downward and can support a cleaner top edge in suitable materials, provided chip clearance and workholding are well controlled.
Can this cutter make deep slots?
Use caution because chips can compact in deep slots. Respect the short cutting length, use suitable passes and maintain effective extraction.
When should the bit be replaced?
Replace it when the edge is chipped, cracked, heavily worn or unable to maintain the required dimensions and finish at verified settings.

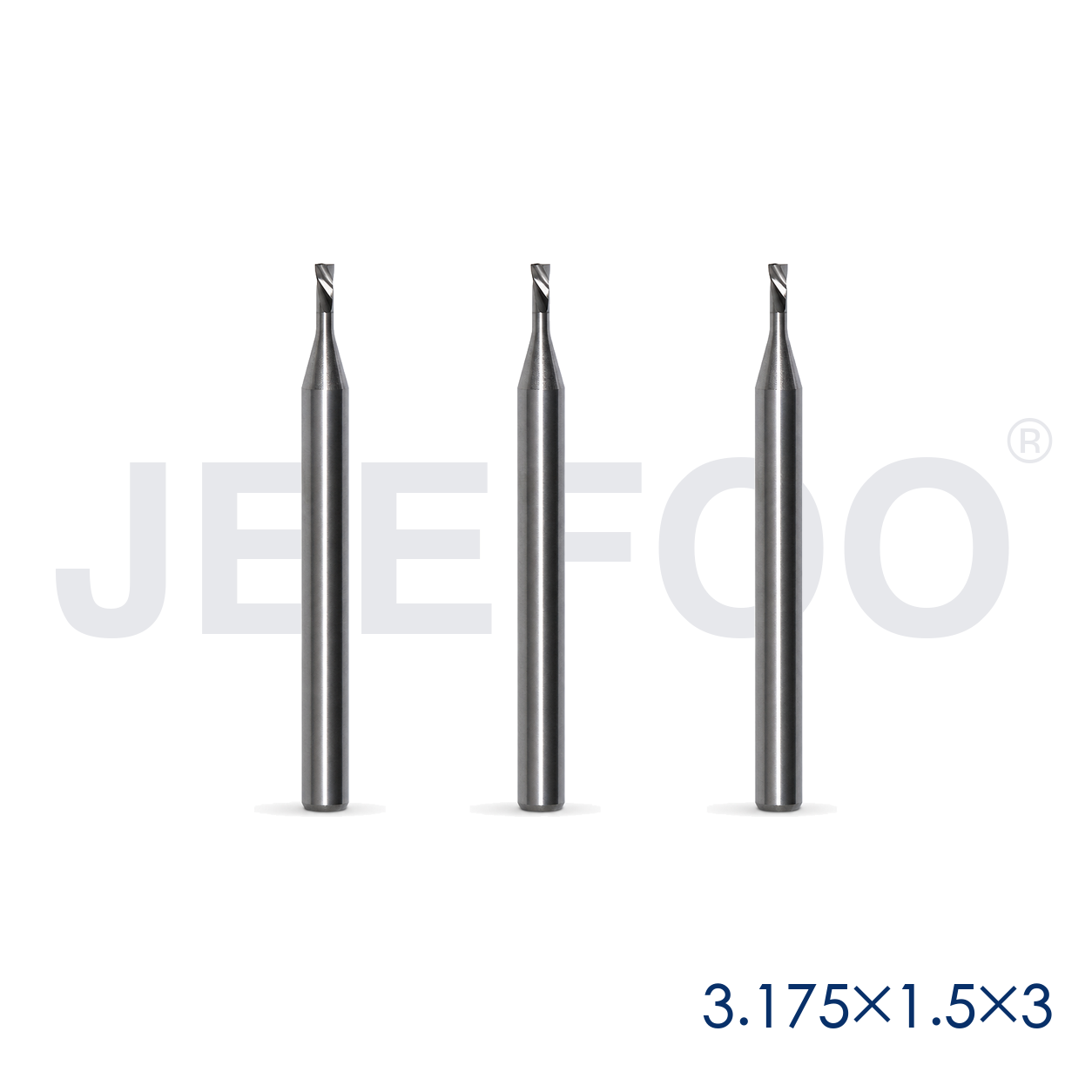

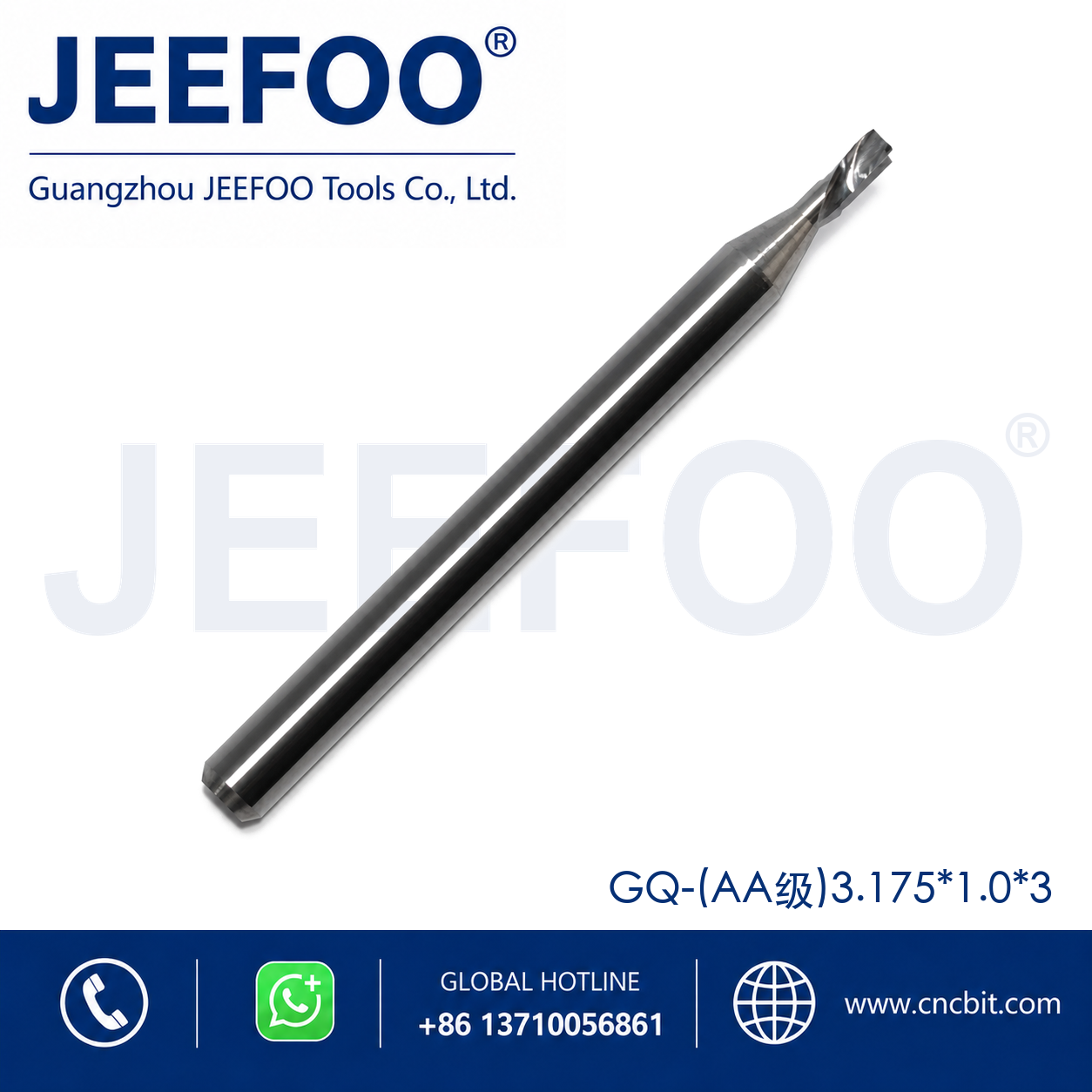

One Spiral Left-Helical Cutter made from solid tungsten carbide delivers clean down-cutting action and excellent edge quality for CNC routing, milling and engraving.
One Spiral Left-Helical Cutter Features
- High-quality solid carbide construction with an excellent cutting effect.
- Single-flute geometry supports efficient chip evacuation.
- Left-hand spiral cutting action pushes chips downward for cleaner top edges.
- Competitive factory-direct pricing and short lead times.
Product Description
- Product name: Tungsten solid carbide single-flute left spiral end mill.
- Application: Suitable for aluminum window frames, wood products, acrylic, PP, PB, PVC and PE sheet materials.
- Carbide material: Premium imported material options include AF, SANDVIK, KENNAMETAL and CB.
- Quality assurance: Manufactured parts are inspected with advanced Zoller measurement equipment.
- Production: Ground on modern precision tool-grinding machines.
- Flexibility: Non-standard sizes are available on request.

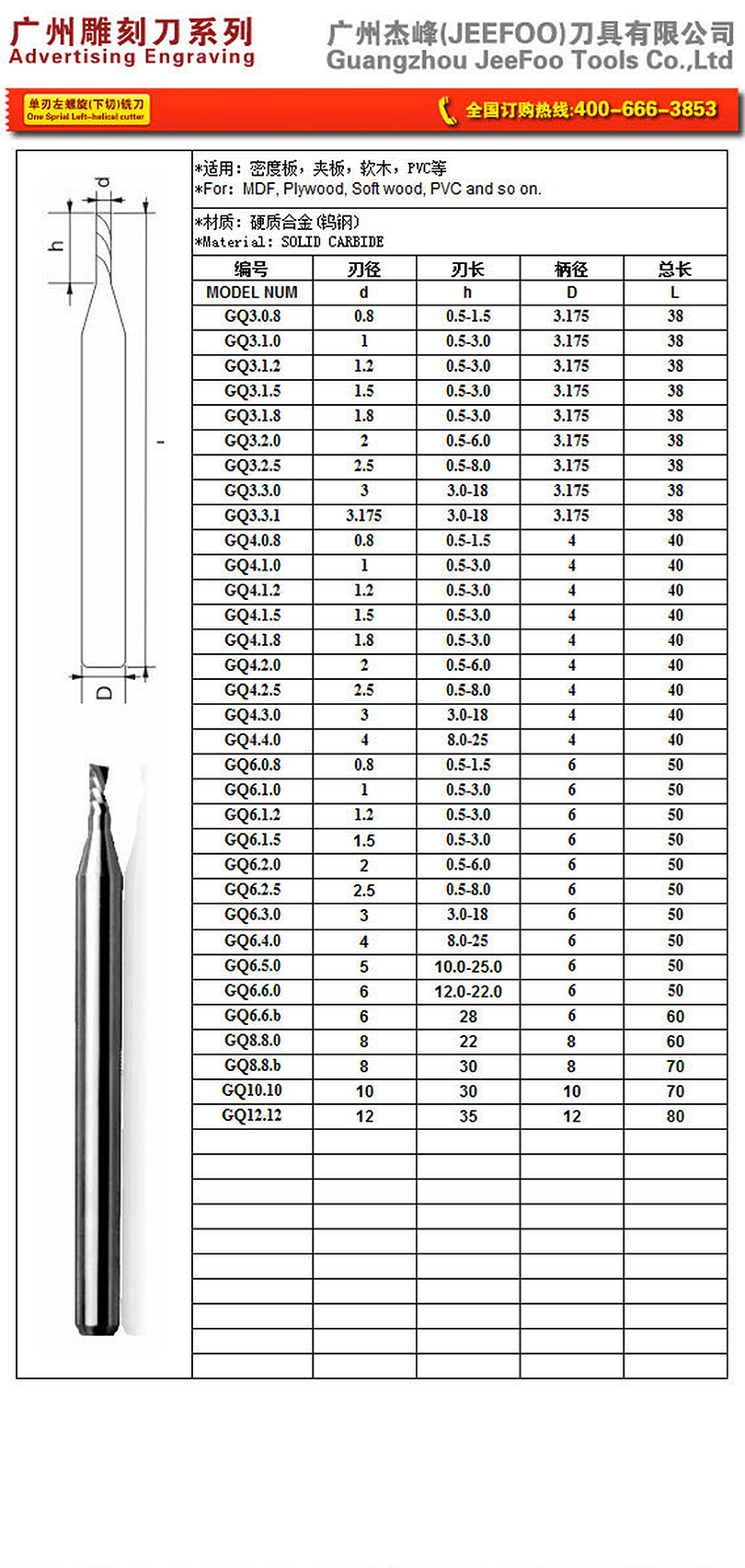

Size: 3.175×1.5×3
Why Choose This Down Cut Router Bit?
This AA Grade One Spiral Left-Helical Cutter combines a single flute for efficient chip removal with a down-cut spiral for controlled, clean CNC machining. It is suitable for advertising fabrication, sign making, woodworking and plastic sheet processing. Contact JEEFOO for standard or custom carbide cutter sizes.
