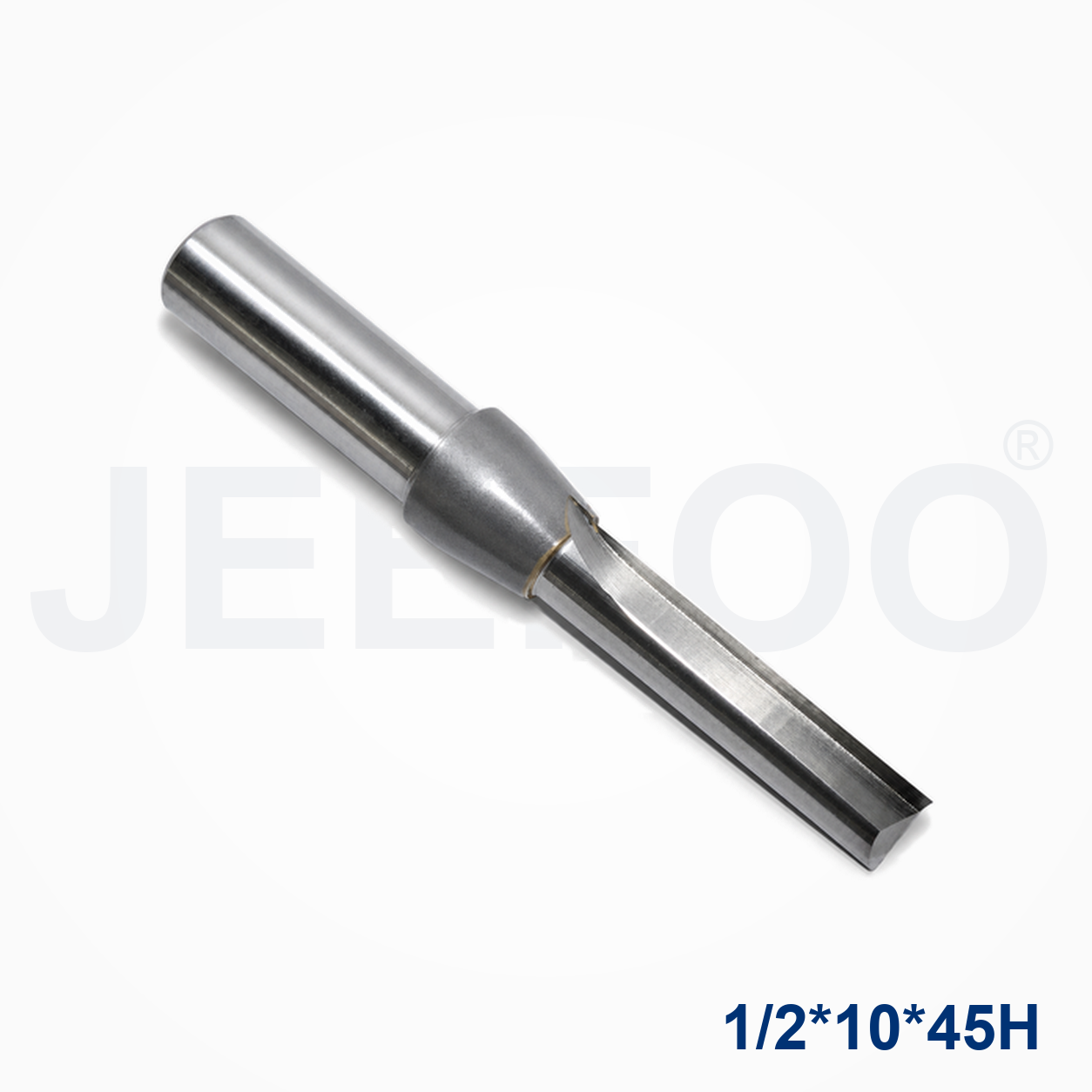

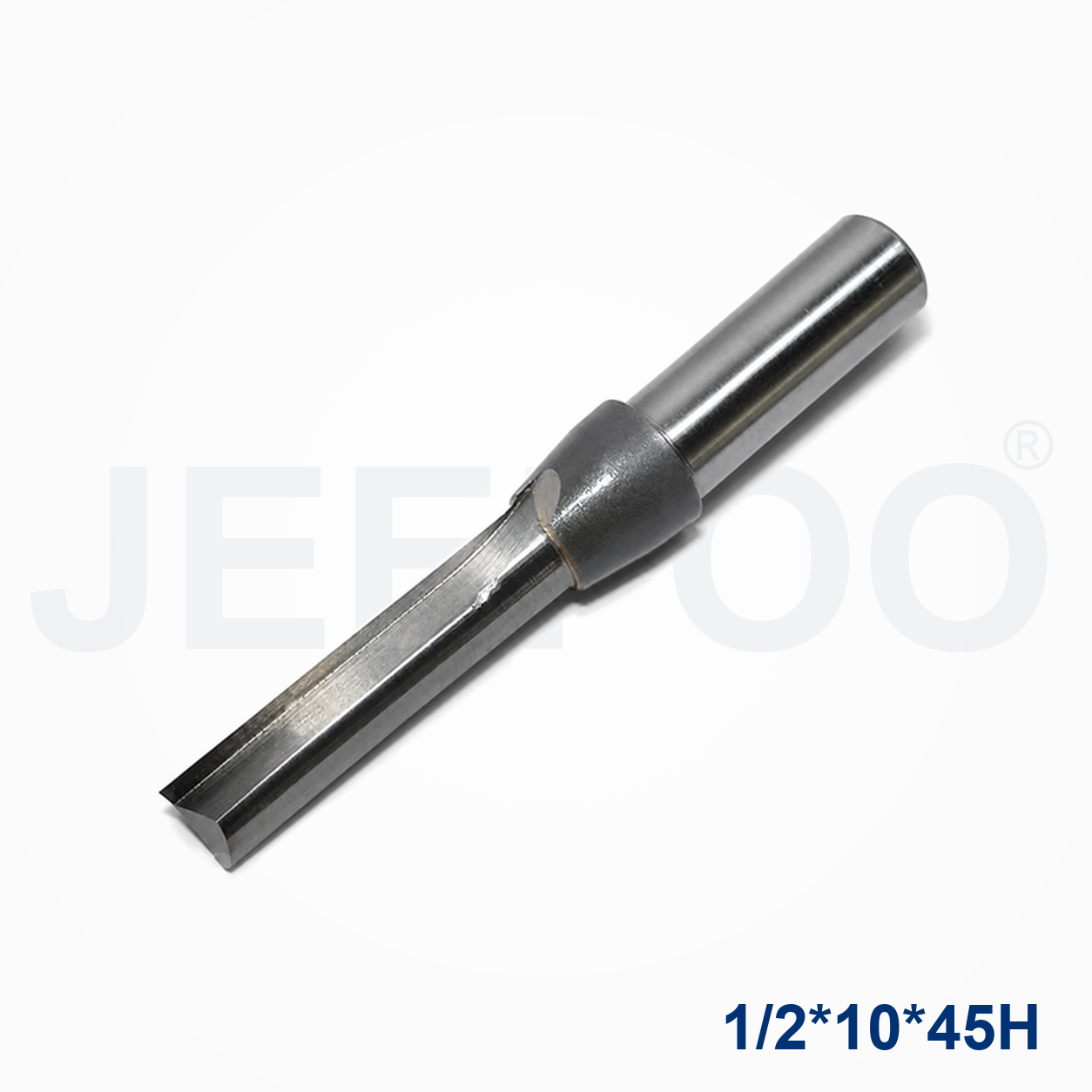

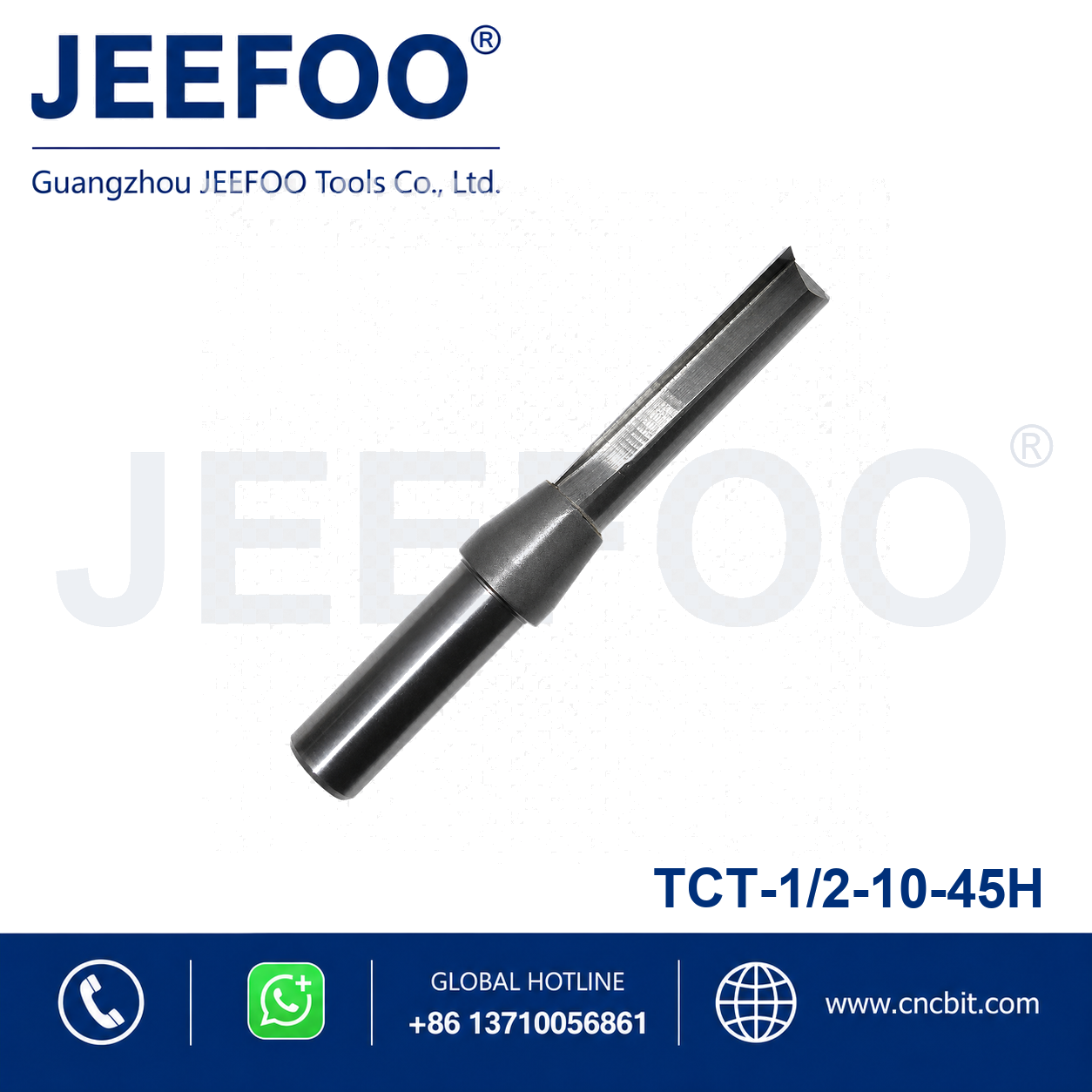

1/2x10x45H TCT Straight Cutter Guide
A 1/2x10x45H TCT straight cutter is designed for woodworking profiles, trimming, grooves and edge machining on compatible CNC routers and woodworking machines. TCT cutting edges combine a durable carbide tip with a supporting cutter body. Correct selection, workholding and dust extraction help produce stable cuts and a consistent surface.
Understanding the Specification
The specification identifies the main shank and cutting dimensions for this WA-series cutter. Confirm the official product drawing before ordering because inch and metric values, cutting diameter, cutting height and overall length must match the machine and workpiece. Do not program from the name alone.
Woodworking Applications
The cutter can be considered for solid wood, MDF, plywood and other approved wood-based panels. Typical work includes straight trimming, channels, furniture parts, templates and production fixtures. Material density, glue layers and abrasive coatings influence tool life and cutting parameters.
- Straight trimming and edge sizing
- Grooves, channels and shallow pockets
- MDF, plywood and solid-wood components
- Furniture, cabinetry and repeat-production parts
Machine Setup and Safe Cutting
Clean the collet or holder and confirm that the 1/2-inch shank matches the machine interface. Clamp enough of the shank for stable rotation without covering the cutting section. Check runout, tool rotation and clearance, then secure the workpiece and guards before starting.
Begin with a conservative feed, spindle speed and cutting depth. Inspect chips, sound, spindle load and edge quality. Use dust extraction suitable for wood and avoid dwelling, which can cause heat or burn marks. Stop if the cutter vibrates, the workpiece moves or the cutting edges appear damaged.
Selecting a TCT Straight Cutter
Before ordering a 1/2x10x45H TCT straight cutter, confirm shank size, cutting diameter, cutting height, overall length and the required profile. Match the maximum depth to the cutter geometry and machine power. For laminated panels, check whether the edge material and glue layer require a different cutter grade.
JEEFOO Woodworking Tools from Guangzhou, China
JEEFOO supplies TCT and carbide woodworking cutters from Guangzhou, China for distributors, manufacturers and workshop users. Share the material, machine interface, profile, depth and production volume when requesting a 1/2x10x45H TCT straight cutter. Explore more products on the JEEFOO cutting tools website.
For general background on computer-controlled cutting, see the reference on numerical control. Record the verified tool number, feed, speed, depth and dust-extraction method with the job file for consistent repeat production.
Production Checks
Make a short test cut in the actual panel before the full batch. Measure the profile, inspect both edges and verify that chips and dust leave the cutting area. Store an approved sample and parameter record with the program. Replace a chipped or dull tool rather than compensating with unsafe changes.
Frequently Asked Questions
Which materials can this cutter machine?
It is intended for compatible solid wood, MDF, plywood and approved wood-based materials. Confirm abrasive coatings or laminates before use.
What should be checked before ordering?
Verify shank size, cutting diameter, cutting height, overall length, rotation direction and machine compatibility against the product drawing.
How can tool life be improved?
Use low runout, secure workholding, suitable feed and effective dust extraction. Inspect the 1/2x10x45H TCT straight cutter before each production batch.
1/2x10x45H TCT Straight Cutter is designed for accurate woodworking cutting, trimming and profile machining. Its cutting geometry supports stable routing and a clean workpiece finish when used with suitable equipment and parameters.
TCT Straight Cutter Features
- Durable cutting edges support dependable woodworking performance and consistent results.
- Precision-machined geometry helps improve cutting stability and surface quality.
- Suitable for compatible CNC routers, woodworking machines and production equipment.
- Designed for solid wood, MDF, plywood and other compatible wood-based materials.
Applications and Selection Guidance
Select the cutter according to the required shank size, cutting diameter, cutting length and profile. Confirm machine speed, feed rate, workholding and tool rotation before production, and use dust extraction appropriate for the material.
Product Description

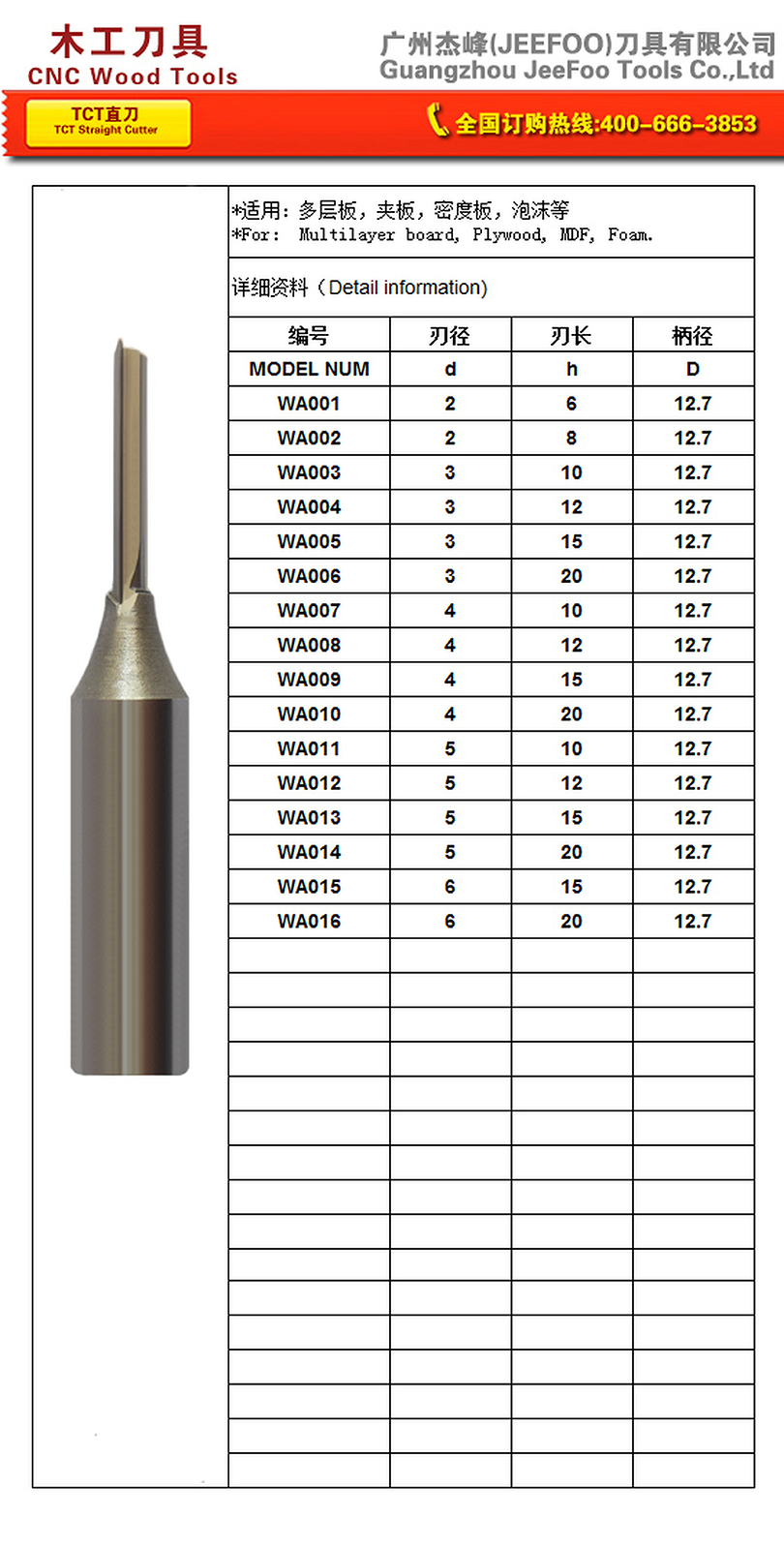

- Series: WA-TCT Straight Cutter.
- Product: 1/2x10x45H TCT Straight Cutter.
- Application: Woodworking cutting, routing, trimming or profile machining.
- Compatibility: Use with a correctly sized collet, holder or spindle interface.
- Customization: Non-standard woodworking cutter dimensions are available.
